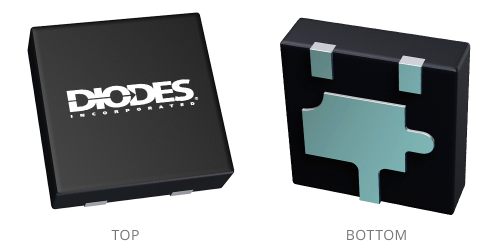

The D22V0S1U6LP2018-7 is a single-channel unidirectional Zener TVS diode from Diodes Incorporated designed to protect sensitive electronics from electrostatic discharge (ESD) and surge events. It features a reverse standoff voltage of 22V, a minimum breakdown voltage of 24V, and a clamping voltage of 42V at a peak pulse current of 130A (8/20µs waveform). The device offers robust ESD protection per IEC 61000-4-2 with ±30kV contact and ±30kV air discharge ratings.
With a typical capacitance of 900pF at 1MHz, this TVS diode is well-suited for general-purpose ESD protection in portable electronics, cellular handsets, computers, and peripherals. It is housed in a compact 6-UFDFN exposed pad package (U-DFN1820-6 Type A) and supports surface mount assembly. The device is rated for operation over a junction temperature range of -55°C to 150°C and has a package power dissipation of 900mW.
The D22V0S1U6LP2018-7 is fully RoHS3 compliant, lead-free, halogen-free, and antimony-free, meeting modern environmental standards. It is supplied in tape and reel packaging with 3,000 pieces per 7-inch reel.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.66 | $0.66 |
| 10+ | $0.40 | $0.40 |
| 100+ | $0.26 | $0.26 |
| 500+ | $0.21 | $0.21 |
| 1,000+ | $0.18 | $0.18 |
| 3,000+ | $0.14 | $0.14 |
| 6,000+ | $0.13 | $0.13 |
| 9,000+ | $0.12 | $0.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The reverse standoff voltage is 22V.
The clamping voltage is 42V at a peak pulse current of 130A (8/20µs).
The peak pulse current is 130A (8/20µs waveform).
It comes in a 6-UFDFN exposed pad package (U-DFN1820-6 Type A).
The device provides ±30kV contact and ±30kV air discharge ESD protection per IEC 61000-4-2.
Yes, it is RoHS3 compliant, lead-free, halogen-free, and antimony-free.
The operating junction temperature range is -55°C to 150°C.
