| Category | |
| Manufacturer Name | |
| Actuator Marking | |
| Actuator Type | |
| Circuit | |
| Color | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

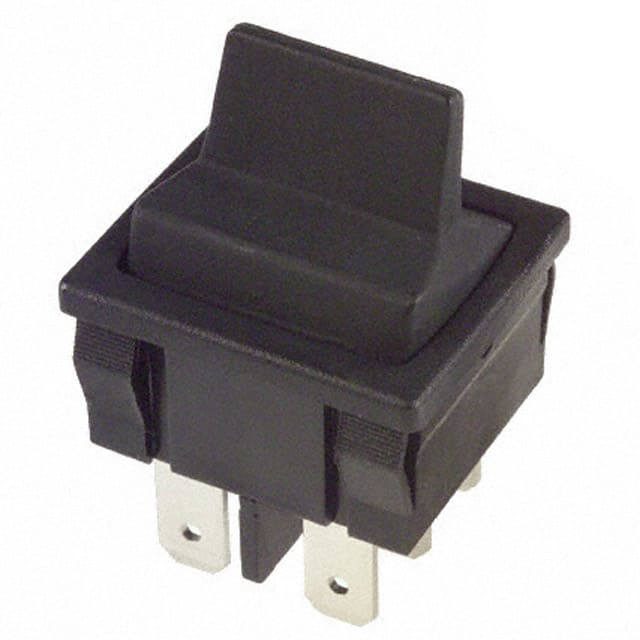

The C&K Components D201J52S215QA is a miniature snap-in power rocker switch from the D Series. It is designed for applications in small appliances, computers, peripherals, and medical instrumentation.
This switch features a DPDT (Double Pole, Double Throw) circuit configuration and is rated for 4A at 125V AC. The termination style is quick connect, specifically 0.187" (4.7mm), and it is designed for panel mounting with a snap-in mechanism. The actuator type is a paddle, and it comes with no marking.
The operating temperature range for this switch is -30°C to 65°C. It has an electrical life of 10,000 make-and-break cycles at full load. The housing and actuator are made of 6/6 nylon (UL 94V-2) in black with a matte finish. Movable contacts are copper with silver plating, while stationary contacts and terminals are copper or brass with silver plating. The contact spring is made of music wire or stainless steel.
Compliance includes RoHS3 status. The panel cutout dimensions are rectangular, measuring 22.53mm x 19.20mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This rocker switch has a current rating of 4A (AC) and a voltage rating of 125V.
The D201J52S215QA switch has a DPDT (Double Pole, Double Throw) circuit.
The operating temperature range for this switch is -30°C to 65°C.
The termination style is Quick Connect - 0.187" (4.7mm), and the mounting type is Panel Mount, Snap-In.
The electrical life is 10,000 make-and-break cycles at full load.
