| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage |

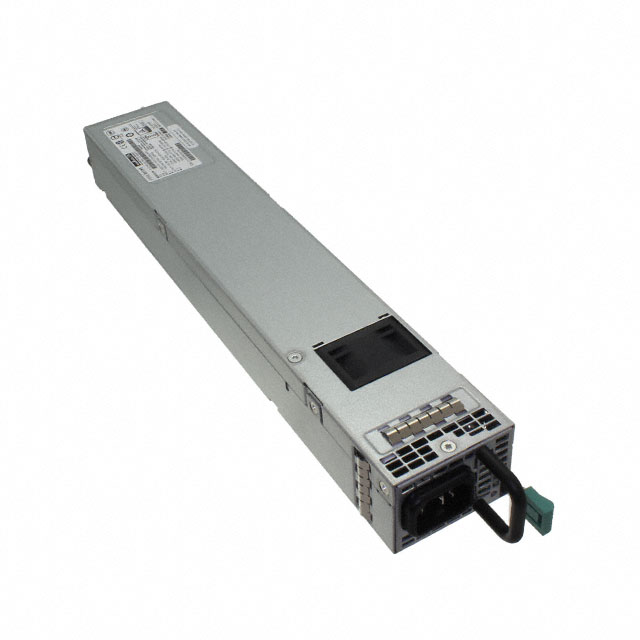

This Murata D1U54P-W-1500-12-HB4TC is a front-end AC/DC converter designed for ITE (Commercial) applications. It delivers a stable 12V output at 125A, with a total power capacity of 1500W. The converter accepts a wide input voltage range of 90 to 264 VAC, ensuring versatility in different power environments.
Key electrical specifications include a high efficiency of 91% and an isolation voltage of 3 kV. The unit is designed for rack mounting and features several advanced functionalities such as hot-swappable operation, I²C™ Interface, Load Sharing, PFC, PMBus™, Remote On/Off, Remote Sense, and a Standby Output. Its operating temperature range is -5°C to 45°C with derating.
The physical dimensions are 321.5mm in length, 54.5mm in width, and 40.0mm in height. Approval agencies include BSMI, CE, cCSAus, CQC, and TUV, indicating compliance with various international standards. The product is supplied in bulk packaging.
90 to 264 VAC.
Rack mount.
-5°C to 45°C with derating.
91%.
Yes, it is hot swappable.
I2C and PMBus interfaces.
BSMI, CE, cCSAus, CQC, TUV.
