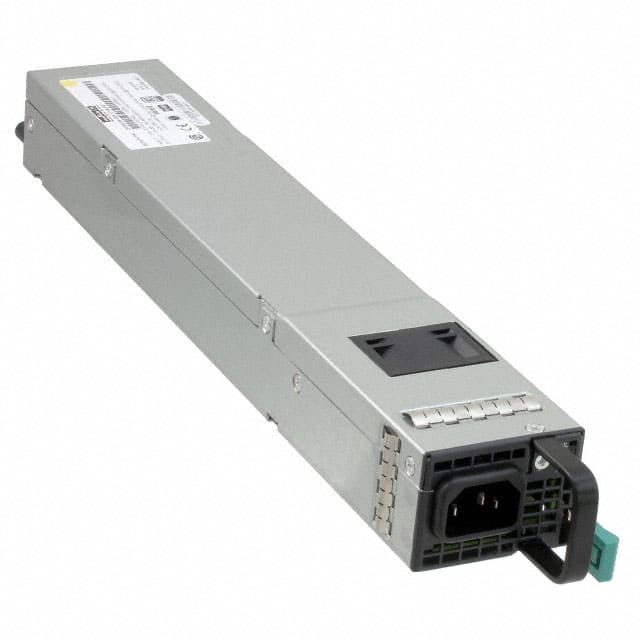

The Murata D1U54P-W-1200-12-HC3PC is a high-power Front End AC DC Converter designed for ITE (Commercial) applications. It delivers a robust 1200W of power with a maximum output current of 100A and features a 3kV isolation voltage.
Key features include hot-swappable capability, an I²C™ interface for communication, load sharing, Power Factor Correction (PFC), remote sense, and a standby output. The converter supports universal input voltage and operates efficiently with 94% efficiency.
This AC DC converter is designed for rack mounting, with dimensions of 322.0mm x 54.5mm x 40.0mm. It operates within a temperature range of 0°C to 60°C. The part is RoHS3 Compliant, has an MSL of 1 Unlimited, and is REACH Unaffected.
The output is 12V at 100A.
The power rating is 1200W.
The efficiency is 94%.
The operating temperature range is 0°C to 60°C.
Features include hot swappable, I²C interface, load sharing, PFC, remote sense, standby output, and universal input.
It is approved by CB, cCSAus, CE, and TUVgs.
