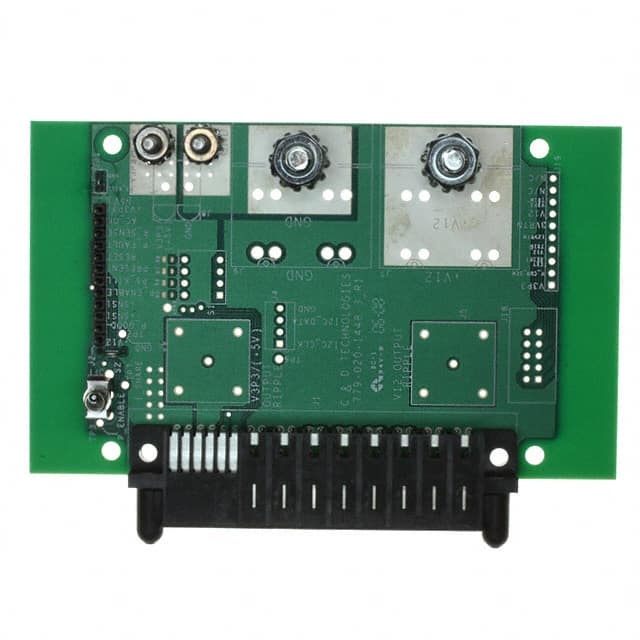

The Murata D1U-12-CONC is an output connector card specifically designed to interface with D1U and D1U4 power supplies. This accessory card is intended for laboratory bench evaluation, allowing users to easily connect to the output voltage and signals of the power supply. It can also serve as a direct interface for integrating into customer applications.
The card provides access to several key signals including P_Good, PS_ON, PS_Kill, and AC_OK, each with defined voltage and current specifications for reliable operation. The remote sense inputs (+SENSE1, -SENSE1) are also available for precise voltage regulation at the load point. The dimensions of the D1U-12-CONC are 3" x 5", making it suitable for standard lab equipment setups.
This connector card simplifies the process of testing and implementing Murata power supplies in various electronic systems. It ensures proper signal integrity and connection for critical power management functions.
The D1U-12-CONC output connector card is intended to facilitate connection for users to evaluate the D1U or D1U4 power supplies in the laboratory and can be used as an interface to their applications.
The D1U-12-CONC provides P_Good, +SENSE1, -SENSE1, PS_ON, PS_Kill, Present, AC_OK, and V_SB signals.
The dimensions of the D1U-12-CONC are 3" x 5".
The high-level voltage for the P_Good signal is greater than 2.4V.
The low-level voltage for the PS_ON signal is less than 0.7V.
The product is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
