| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18 pcs
|
18 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

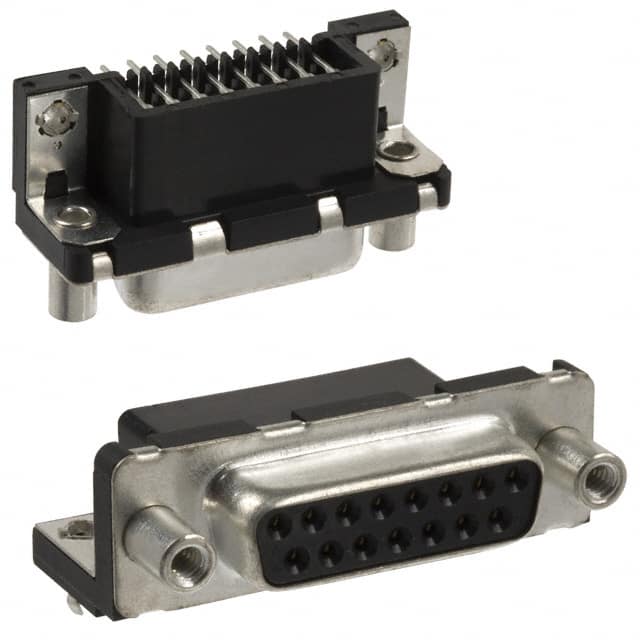

The D15S33E4GV00LF is a 15-position D-Sub receptacle manufactured by Amphenol ICC. It features female sockets arranged in 2 rows with a right angle orientation for through-hole mounting. The termination is solder type, making it suitable for soldering directly onto a printed circuit board. The connector's shell is made of steel with a tin-nickel plating, providing durability and corrosion resistance. The contacts are signal type with gold flash finish, ensuring reliable electrical connections. The backset spacing is 0.318 inches (8.08 mm), and the flange features mating side female screwlocks (4-40) for secure mating. The connector includes board lock and mounting brackets for additional mechanical stability. The housing material has a UL94 V-0 flammability rating, indicating resistance to flame propagation. This D-Sub connector is commonly used in computer, industrial, and telecommunications applications requiring a compact and reliable interconnect solution.
Receptacle, Female Sockets.
15 positions arranged in 2 rows.
Through Hole, Right Angle.
Solder.
5 A per contact.
Gold flash.
RoHS3 Compliant (unverified).
