| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,600 pcs
|
2600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Features In Packaging | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

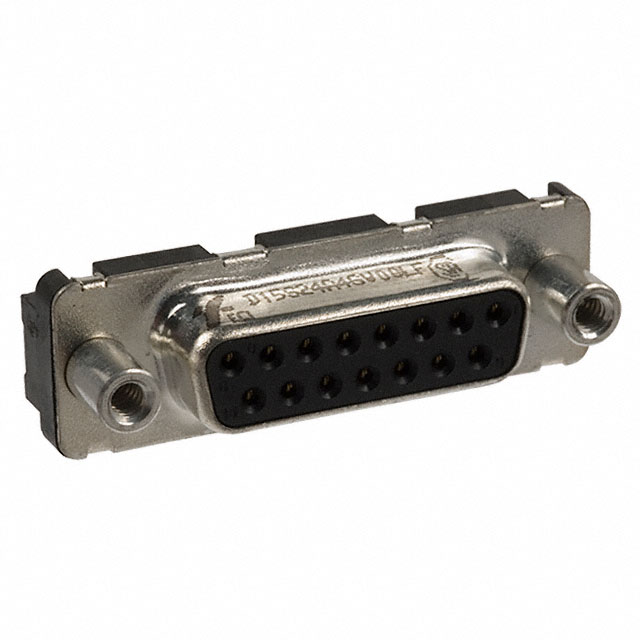

The D15S24A4GV00LF from Amphenol ICC is a D-Sub receptacle connector featuring 15 positions arranged in 2 rows with female socket contacts. It is designed for through hole solder mounting, providing a reliable and robust connection for various electronic applications.
The contacts are finished with gold flash plating, offering good corrosion resistance and reliable electrical performance. The connector is rated for 5A per contact and includes a board lock feature to secure the connector to the PCB during soldering. The shell is made of steel with tin-nickel plating, and the connector meets UL94 V-0 flammability rating for the insulator material.
This connector is suitable for use in data communication, industrial control, and computer peripheral interfaces where a standard D-Sub form factor with 15 pins is required. The female screwlock (4-40) on the mating side allows secure mating with male connectors.
It has 15 positions arranged in 2 rows.
The current rating is 5A per contact.
It is through hole solder mounting.
The contacts have gold flash plating.
Yes, it includes a board lock for PCB retention.
The shell is steel with tin-nickel plating.
The insulator material is rated UL94 V-0.
