| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

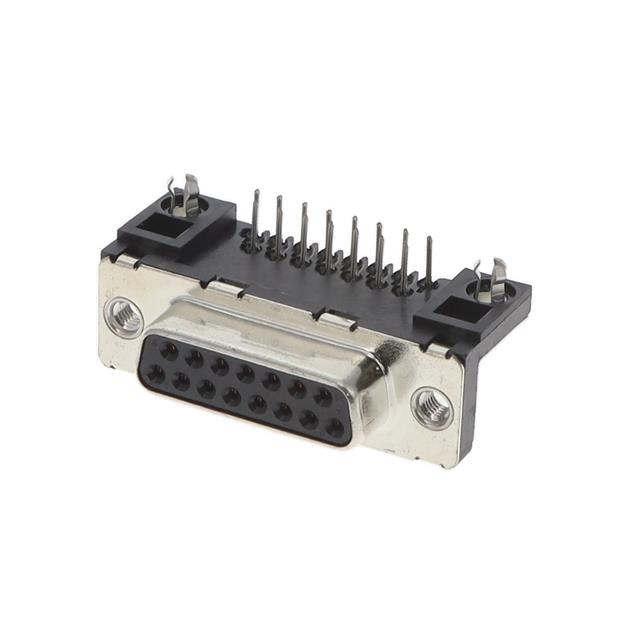

The D15S13F6GL00LF is a 15-position D-Sub receptacle from Amphenol ICC, designed for right angle through-hole mounting with solder termination. It has a shell size of 2 (DA, A) and two rows of contacts. The contact finish is gold or Gold, GXT with 30µin thickness, suitable for reliable signal connections. The steel shell is tin plated for durability. The connector includes board locks and mounting brackets for secure PCB attachment. The flange feature uses M3 threads. The insulator is rated UL94 V-0 for flammability. The backset spacing is 10.40mm (0.409 inches). This connector is rated for 5A per contact and is suitable for signal applications in computing, industrial control, and data communication equipment.
15 positions in 2 rows.
5A per contact.
Through hole, right angle with solder termination.
Gold or Gold, GXT™ with 30µin thickness.
Steel with tin plating.
UL94 V-0.
