| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
600 pcs
|
600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

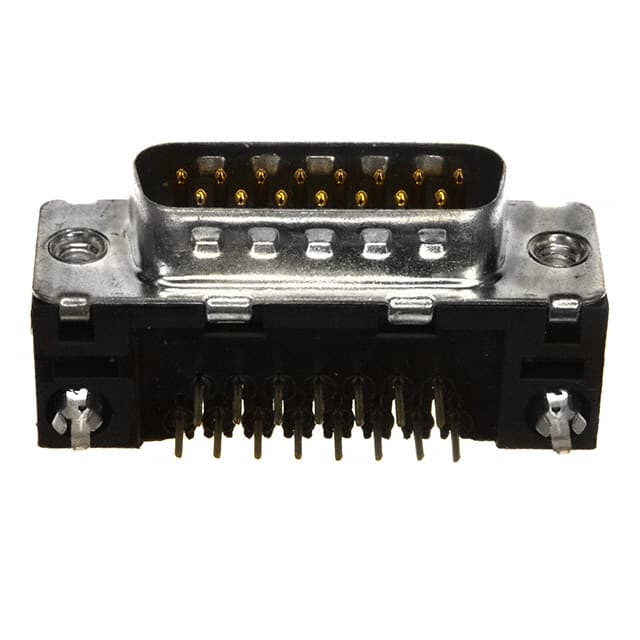

The D15P33E4GX00LF is a D-Sub connector plug from Amphenol ICC. It features 15 positions arranged in 2 rows with male pin contacts. The contact type is signal, and the contacts are finished with gold flash for reliable conductivity.
This connector is designed for through hole, right angle mounting with solder termination. The shell is size 2 (DA, A) and is made of steel with a tin-nickel plating. It includes a flange feature with housing/shell (4-40) for secure mounting. Additional features include board lock, grounding indents, and mounting brackets.
The current rating is 5A per contact. The backset spacing is 0.318 inches (8.08mm). The insulator material has a flammability rating of UL94 V-0. This connector is RoHS3 compliant and has an MSL of 1 (Unlimited).
15 positions arranged in 2 rows.
5A per contact.
Through hole, right angle mounting with solder termination.
Gold flash contact finish.
Steel with tin-nickel plating.
UL94 V-0.
Yes, indicated as RoHS3 compliant. Note: this data is unverified.
