| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

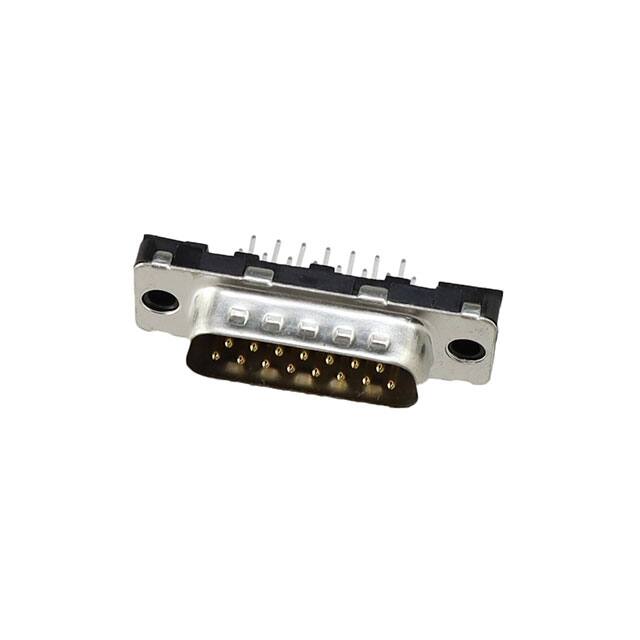

This D-Sub plug (connector style D-Sub) from Amphenol ICC features 15 male pins arranged in 2 rows with a shell size of 2 (DA, A). The connector is designed for through hole mounting and solder termination, making it suitable for permanent PCB attachment.
Electrical characteristics include a current rating of 5A per contact with signal contact type. The contacts have a gold finish with 30.0µin (0.76µm) thickness, providing reliable conductivity and corrosion resistance.
Mechanical features include a steel shell with tin-nickel plating and a housing/shell unthreaded flange with grounding indents for improved EMI performance. The insulator material has a UL94 V-0 flammability rating.
This connector has 15 positions (male pins) arranged in 2 rows.
The current rating is 5A per contact.
It uses through hole mounting with solder termination.
The contacts have a gold finish with a thickness of 30.0µin (0.76µm).
The shell size is 2 (DA, A).
