| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
450 pcs
|
450 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

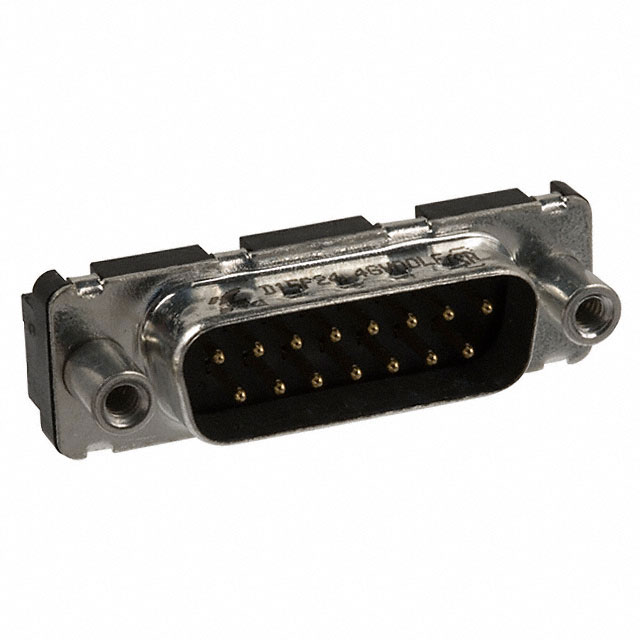

The Amphenol ICC D15P24B6GX00LF is a D-Sub plug connector designed for reliable signal transmission. This connector features 15 male pins arranged in 2 rows, with a current rating of 5A per contact. The contacts are gold-plated with a thickness of 30 microinches (0.76 micrometers) for corrosion resistance and reliable connectivity. The shell is made of steel with a tin-nickel plating, and includes flange features for housing/shell mounting with 4-40 screwlocks. Additional features include board locks and grounding indents to ensure secure attachment and EMI protection. The connector uses through hole mounting with solder termination for permanent attachment to a PCB. The insulator material has a UL94 V-0 flammability rating. This part is claimed to be RoHS3 compliant and REACH unaffected, with an MSL rating of 1 (unlimited). No datasheet is currently available for this part.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.83 | $4.83 |
| 10+ | $4.61 | $4.61 |
| 25+ | $3.91 | $3.91 |
| 100+ | $3.86 | $3.86 |
| 300+ | $3.38 | $3.38 |
| 600+ | $2.94 | $2.94 |
| 2,550+ | $2.92 | $2.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 15 positions, arranged in 2 rows.
The current rating is 5A per contact.
The mounting type is through hole with solder termination.
The contacts are gold plated with a thickness of 30 microinches (0.76 micrometers).
The shell is steel with tin-nickel plating.
Yes, it features board locks and grounding indents.
The material flammability rating is UL94 V-0.
