| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
475 pcs
|
475 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Finish | |
| Shell Material | |
| Shell Material, Finish | |
| Shell Size | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

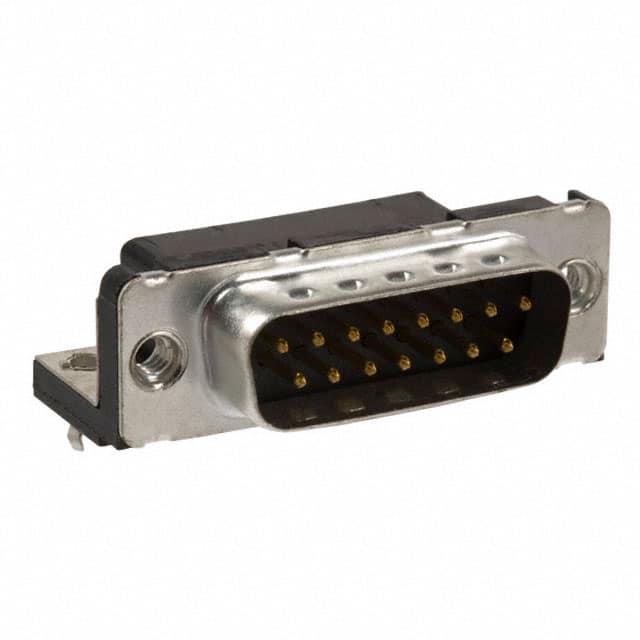

The D15P13A4GX00LF is a D-Sub plug connector assembly from Amphenol ICC. It features 15 male pin contacts arranged in 2 rows, with a DA shell size. The connector is designed for through hole right angle mounting and uses solder termination for secure electrical connections. Contacts are gold flashed for reliable signal transmission. The steel shell is finished with tin-nickel plating and includes a housing/shell flange with 4-40 thread for secure mating. The insulator material is rated UL94 V-0 for flammability. Additional features include board locks, grounding indents, and mounting brackets for enhanced mechanical stability. The backset spacing is 0.409 inches (10.40 mm). Each contact is rated for a maximum current of 5 A. This connector is suitable for signal applications in various electronic systems requiring a robust and compact interface.
This D-Sub plug has 15 positions arranged in 2 rows.
The maximum current rating is 5 A per contact.
The connector is through hole, right angle mount with solder termination.
The shell is steel with a tin-nickel plated finish.
The insulator material has a UL94 V-0 flammability rating.
