| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | 0851 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Marking | |
| Actuator Type | |
| Circuit | |
| Color | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

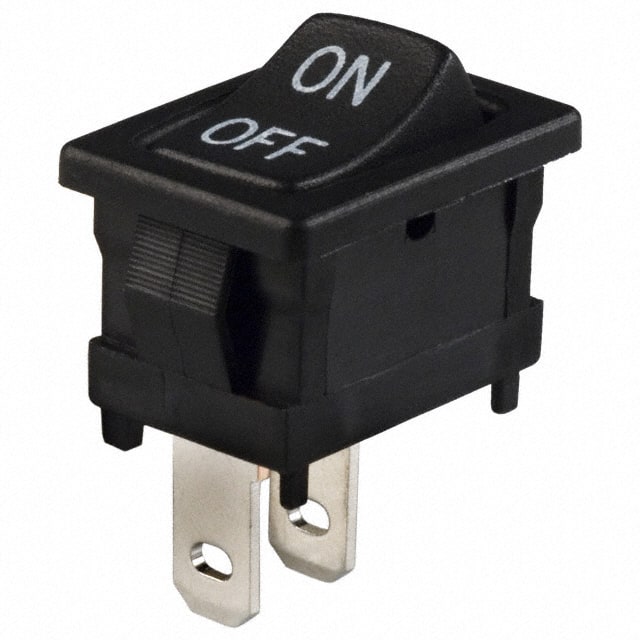

The C&K Components D102J12S217DQA is a miniature snap-in power rocker switch from the D Series. It is designed for applications in small appliances, computers and peripherals, and medical instrumentation.
This switch features a Single Pole Single Throw (SPST) circuit with an On-Off function. It is rated for 4A at 125V AC and has a 10,000 cycle electrical life at full load. The operating temperature range is -30°C to 65°C.
The mounting type is panel mount with a snap-in style, and the termination is solder or quick connect (0.187" / 4.7mm). The actuator is a concave, curved type with an 'ON OFF' marking in a vertical orientation, and the housing is black.
Materials include 6/6 nylon for the actuator and housing, copper with silver plating for movable contacts, and copper or brass with silver plating for stationary contacts and terminals. The contact spring is made of music wire or stainless steel. This switch is RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 125V AC.
The operating temperature range is -30°C to 65°C.
The current rating is 4A at 125V AC.
It features a SPST (Single Pole Single Throw) circuit.
It is panel mounted with a snap-in style.
The termination styles are solder and quick connect (0.187" / 4.7mm).
Yes, it is RoHS3 compliant.
