| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
360 pcs
|
360 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

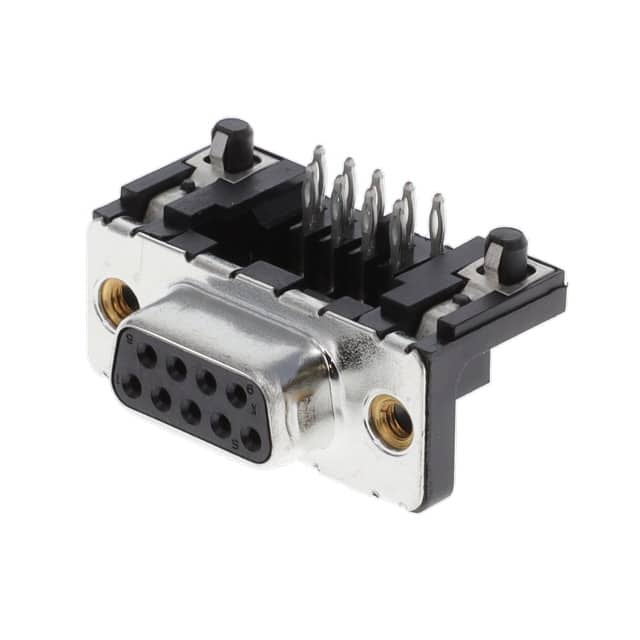

The D09S81C4GL00LF is a D-Sub receptacle connector from Amphenol ICC's Delta-D series. It features 9 positions arranged in 2 rows, with female socket contacts. The connector is designed for through hole mounting with a right angle orientation, using press-fit termination for secure board attachment. The contacts are gold-plated with flash thickness, and the shell is made of steel with tin-nickel plating. The connector is rated for 5A per contact and is suitable for signal applications. It includes a board guide feature for alignment, and the backset spacing is 0.409 inches (10.40mm). The insulator material has a flammability rating of UL94 V-0. The flange feature accepts M3 hardware. This connector is part of the Delta-D pressfit series, offering reliable performance in various interconnect applications.
9 positions.
5A per contact.
Through hole, right angle with press-fit termination.
2 rows.
Gold flash.
Steel with tin-nickel plating.
RoHS3 compliant (unverified, low confidence).
