| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14,670 pcs
|
14670 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
130 pcs
|
130 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

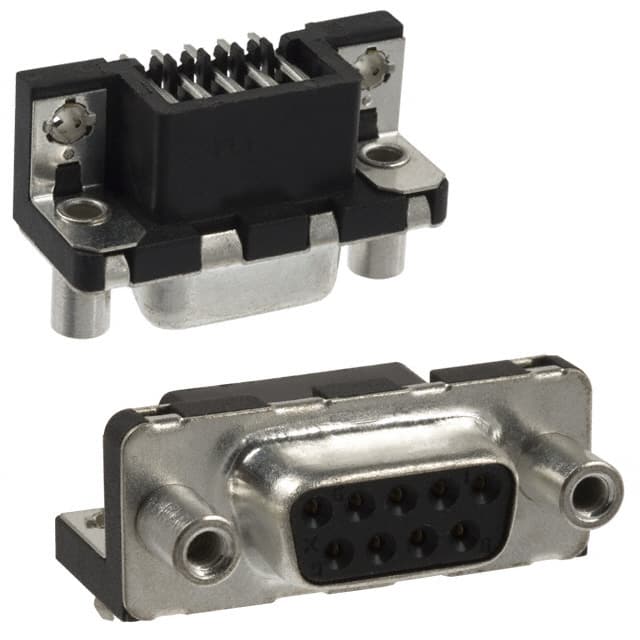

The D09S33E4GV00LF is a 9-position D-Sub receptacle from Amphenol ICC. It features female socket contacts arranged in 2 rows, with a shell size of 1 (DE, E). The connector uses through-hole right angle solder termination for secure PCB mounting. Contacts are signal type with gold flash finish. The steel shell has a tin-nickel plated finish. A mating side female screwlock (4-40) flange feature is included, along with board lock and mounting brackets for mechanical retention. The backset spacing is 0.318" (8.08mm). The insulator material has a UL94 V-0 flammability rating.
Receptacle, Female Sockets; D-Sub style.
9 positions in 2 rows.
Through Hole, Right Angle; Solder termination.
5 A per contact.
Shell size 1 (DE, E); Steel, Tin-Nickel Plated.
UL94 V-0.
