| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

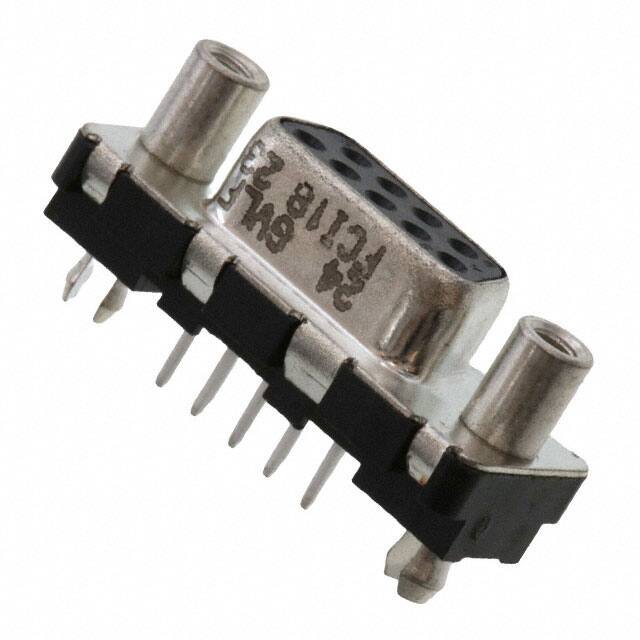

The Amphenol ICC D09S24B6GV00LF is a 9-position D-Sub receptacle designed for reliable signal connections. It features female sockets with gold-plated contacts (30.0µin) for corrosion resistance and reliable conductivity. The connector is rated for 5 A per contact and uses a through hole mounting style with solder termination.
The shell is made of steel with a tin-nickel plated finish, providing durability and EMI shielding. The connector layout is shell size 1 (DE, E) and includes a mating side female screwlock (4-40) flange feature for secure mating. A board lock feature aids in PCB retention during soldering. The insulator material has a UL94 V-0 flammability rating.
The D09S24B6GV00LF has 9 positions arranged in 2 rows.
The current rating is 5 A per contact.
It uses through hole mounting with solder termination.
The contacts have a gold finish with a thickness of 30.0µin (0.76µm).
Yes, it includes a board lock feature for secure PCB retention.
