| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
360 pcs
|
360 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

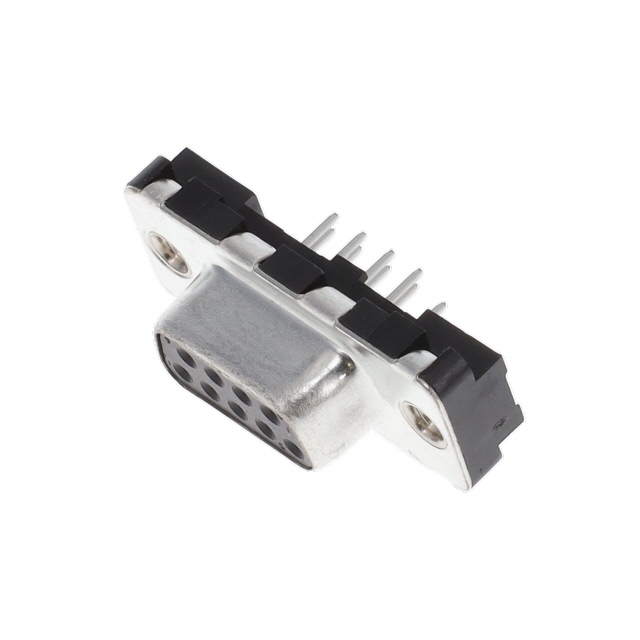

The D09S24B4PL00LF is a 9-position D-Sub receptacle from Amphenol ICC. It uses female socket contacts arranged in 2 rows, with a shell size of DE (E). The connector is designed for through hole mounting with solder termination, providing a permanent and reliable connection to the PCB.
Electrical specification: each contact is rated for 5A continuous current. The contacts are finished with gold flash for corrosion resistance and reliable signal integrity. The insulator is made from UL94 V-0 rated material, ensuring flammability safety.
Mechanically, the connector features a steel shell with tin plating for durability and EMI shielding. It includes a flange feature with M3 threads for secure mounting. The operating temperature range is not specified but is typical for standard D-Sub connectors.
9 positions.
5A per contact.
Through hole.
DE (E).
Gold flash.
UL94 V-0.
2 rows.
