| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
360 pcs
|
360 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

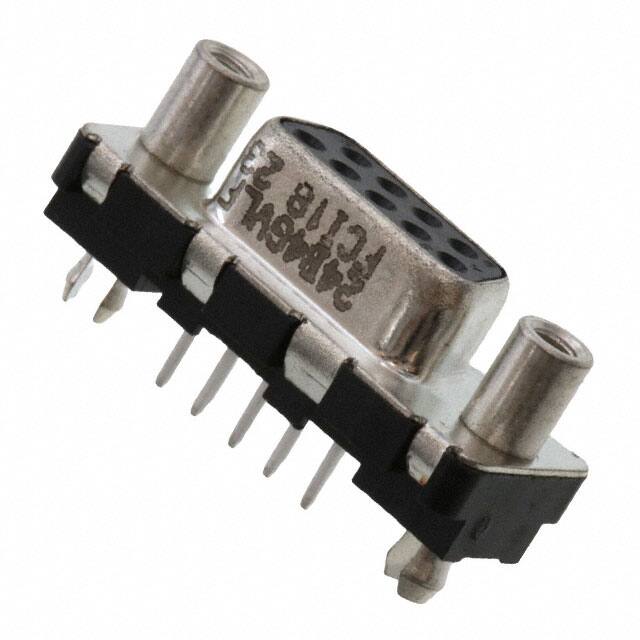

The D09S24B4GV00LF is a D-Sub receptacle connector from Amphenol ICC. It features 9 signal contacts arranged in 2 rows, with a shell size of 1 (DE, E). The connector uses through hole mounting and solder termination for secure attachment to a printed circuit board. Contact finish is gold flash, providing reliable electrical performance. The shell is constructed from steel with a tin-nickel plating, and the insulator material has a UL94 V-0 flammability rating. A flange feature with female screwlock (4-40) on the mating side is included, and the connector also incorporates a board lock for additional mechanical retention. Each contact is rated for 5A current.
This D-Sub receptacle has 9 positions.
Each contact is rated for 5A.
Through hole mounting.
Solder termination.
Gold flash contact finish.
Steel shell with tin-nickel plating.
Yes, it includes a female screwlock (4-40) on the mating side and a board lock.
