| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
62 pcs
|
62 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

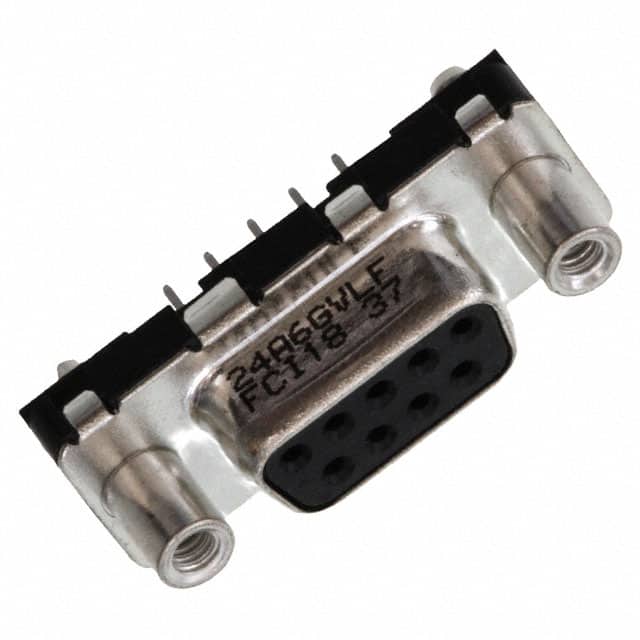

The D09S24A6GV00LF is a 9-position D-Sub receptacle connector from Amphenol ICC. It features female socket contacts arranged in 2 rows, with a DE (E) shell size. The connector is designed for through-hole mounting and solder termination, making it suitable for permanent PCB attachment.
Electrical rating is 5A per contact. The contacts are finished with gold or Gold GXT™ to a thickness of 30.0µin (0.76µm), ensuring reliable low-resistance connections. The steel shell is tin-nickel plated for corrosion resistance and EMI shielding. A mating side female screwlock (4-40) flange feature is included for secure panel or cable mating.
The insulator is rated UL94 V-0 for flammability, and the connector includes a board lock feature for additional mechanical retention during soldering. Moisture sensitivity level is 1 (unlimited).
9 positions.
5A per contact.
Through hole.
Gold or Gold, GXT™ with 30.0µin thickness.
Steel, tin-nickel plated.
Yes, it includes a board lock.
UL94 V-0.
