| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
180 pcs
|
180 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

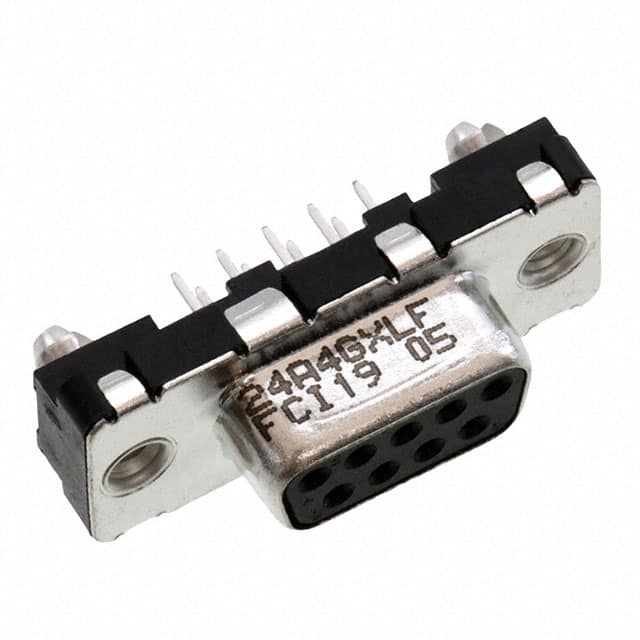

The D09S24A4GX00LF is a 9-position D-Sub receptacle connector from Amphenol ICC. It uses female socket contacts and is designed for through hole mounting with solder termination. The connector has a shell size of 1 (DE, E) and features a board lock for secure attachment to the PCB.
Key electrical specifications include a current rating of 5A per contact. The contact finish is gold flash, and the shell is made of steel with a tin-nickel plated finish. The flange feature uses a 4-40 threaded insert for mating hardware. The connector is rated UL94 V-0 for material flammability.
Environmental compliance data is listed as RoHS3 compliant, REACH unaffected, and MSL 1 (unlimited), though these are unverified and should be confirmed with the manufacturer. The part is cross-referenced to DigiKey part number 609-5872-ND.
The connector has 9 positions arranged in 2 rows.
The current rating is 5A per contact.
Through hole mounting.
Gold flash contact finish.
Steel with tin-nickel plating.
UL94 V-0 rating.
Yes, the connector includes a board lock feature.
