| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
180 pcs
|
180 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

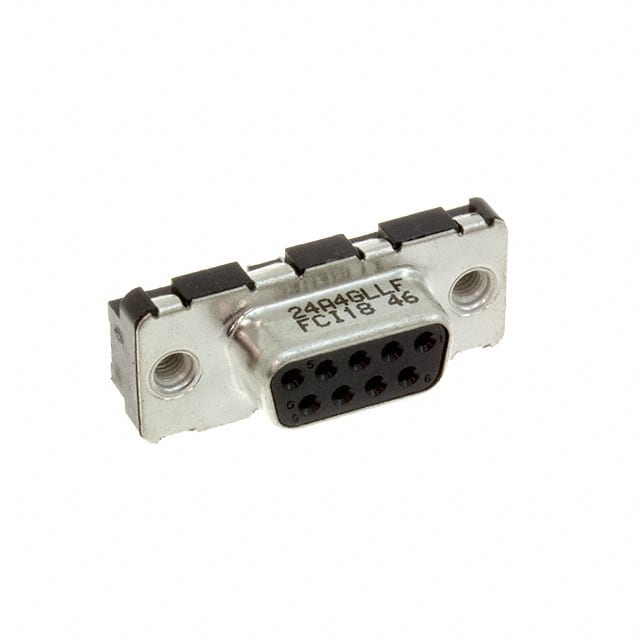

The D09S24A4GL00LF is a 9-position D-Sub receptacle connector manufactured by Amphenol ICC. It features a receptacle connector style with female sockets arranged in 2 rows. The connector is designed for through-hole mounting with solder termination, making it suitable for PCB applications.
Contact surfaces are gold-plated with flash thickness, providing reliable signal transmission. The shell is made of steel with a tin-nickel plating for durability. A board lock feature is included to secure the connector to the PCB during assembly. The insulation material has a UL94 V-0 flammability rating.
Electrically, each contact is rated for 5A current. This connector is suitable for signal applications and is compliant with RoHS3, REACH, and MSL Level 1 (unlimited) per the data, though these compliance statuses are unverified.
9 positions.
5A per contact.
Through hole with solder termination.
Gold.
Yes, it includes a board lock.
UL94 V-0.
Steel with tin-nickel plating.
