| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

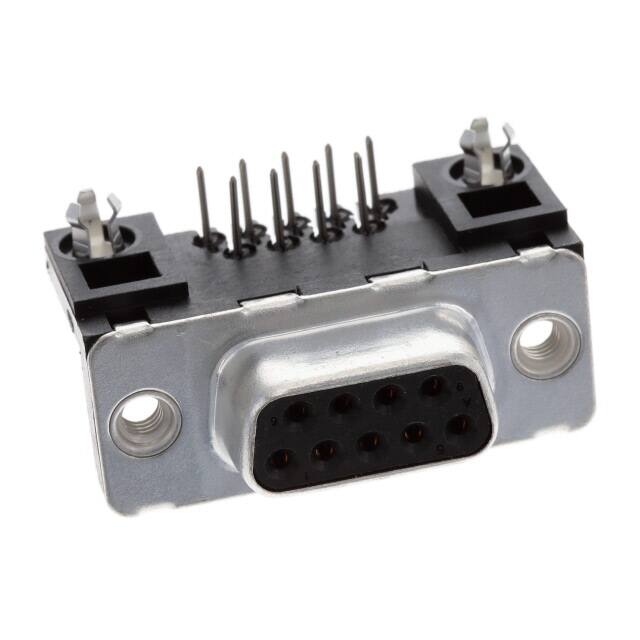

The Amphenol ICC D09S13F6GL00LF is a 9-position D-Sub receptacle connector designed for reliable signal interconnections. It features female socket contacts arranged in 2 rows within a DE- (E) shell size. The connector is configured for through hole, right angle mounting with solder termination, making it suitable for PCB applications where space constraints require a right-angle interface.
The contacts are finished with Gold or Gold, GXT™ plating with a thickness of 30.0µin (0.76µm), providing good corrosion resistance and reliable electrical performance over repeated mating cycles. The steel shell is tin plated, and the housing includes board locks and mounting brackets for secure attachment to the PCB. The connector is rated for 5A current per contact and the insulator material meets UL94 V-0 flammability rating.
The connector has 9 positions arranged in 2 rows.
It is a through hole, right angle mount with solder termination.
The current rating is 5A per contact.
The contact finish is Gold or Gold, GXT™ with a thickness of 30.0µin (0.76µm).
The shell size is 1 (DE, E).
