| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flammability Rating | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material | |
| Shell Material, Finish | |
| Shell Size | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

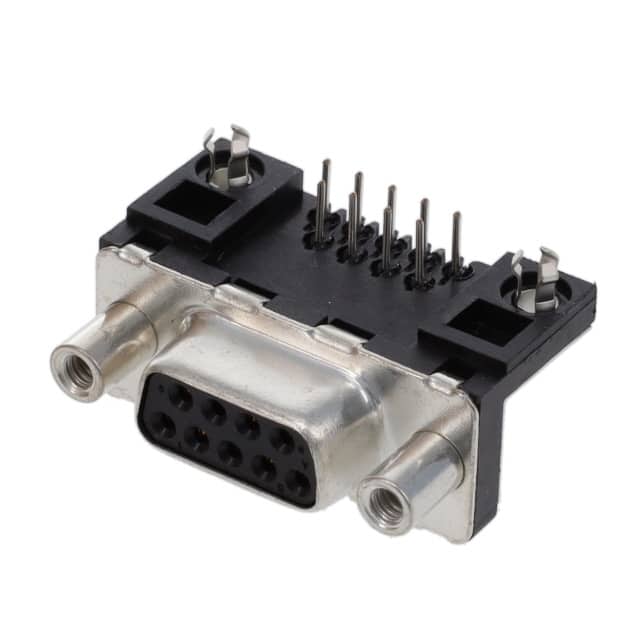

The D09S13A6GV00LF is a 9-position D-Sub receptacle connector from Amphenol ICC. It features female sockets and a right-angle through-hole mounting style with solder termination. The connector has a steel shell with tin-nickel plating and includes board locks and mounting brackets for secure attachment. Contacts are gold or GXT™ plated with 30µin thickness, suitable for signal applications. Electrical rating is 5A per contact. The shell size is 1 (DE, E) with a backset spacing of 0.409 inches. The insulator material is rated UL94 V-0 for flammability. This connector is designed for use in a variety of applications requiring reliable D-Sub connections. Note: RoHS compliance is unverified in the source data.
9 positions.
5 A per contact.
Through hole, right angle.
Shell size 1 (DE, E).
Gold or Gold, GXT™, 30µin (0.76 µm).
Board lock and mounting brackets.
UL94 V-0.
