| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,270 pcs
|
3270 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

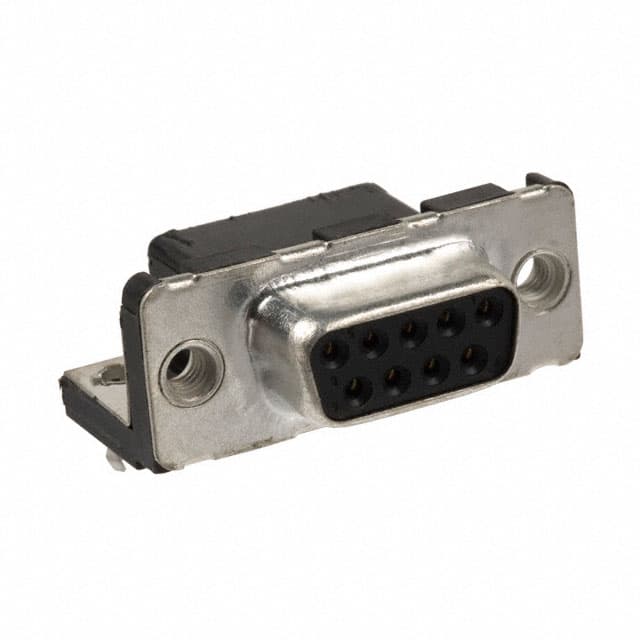

The D09S13A4GX00LF is a 9-position D-Sub receptacle from Amphenol ICC, designed for signal interconnection in a wide range of electronic systems. This connector features a right angle mounting orientation with through-hole solder termination, making it suitable for space-constrained PCB layouts where perpendicular cable entry is required.
Key specifications include 9 female socket contacts arranged in 2 rows with shell size DE (E). The contacts are gold flash plated over nickel, ensuring reliable low-level signal transmission. The steel shell is finished with tin-nickel plating for corrosion resistance and EMI shielding. The insulator is made from UL94 V-0 rated material. The connector includes board locks and mounting brackets for secure attachment to the PCB. Backset spacing is 10.40mm.
With a current rating of 5A per contact, this connector is suitable for signal and low-power applications. The right angle design is commonly used in industrial control, data communication, and peripheral interface applications.
This D-Sub receptacle has 9 positions.
The current rating is 5A per contact.
The mounting type is through hole, right angle with solder termination.
The contact finish is gold flash.
The shell is steel with tin-nickel plating.
Features include board lock and mounting brackets.
The insulator is rated UL94 V-0.
