| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
990 pcs
|
990 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

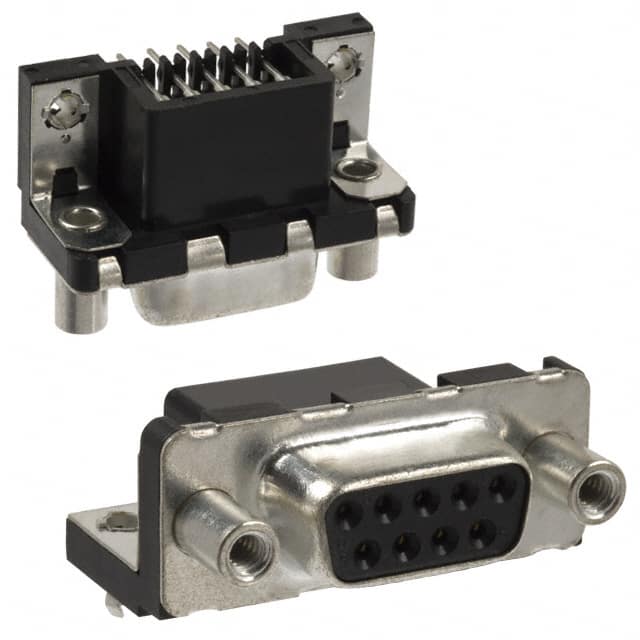

The D09S13A4GV00LF is a 9-position D-Sub receptacle with female sockets, designed for through hole, right angle mounting with solder termination. It features gold flash contact finish for reliable signal transmission and a current rating of 5A per contact.
The connector uses a steel shell with tin-nickel plating and includes board locks and mounting brackets for secure PCB attachment. The insulator material is rated UL94 V-0 for flammability resistance. The shell size is 1 (DE, E) with a backset spacing of 0.409 inches (10.40mm).
This component is suitable for I/O and signal interconnections in industrial control, data communication, and instrumentation equipment where a compact right-angle orientation is required.
9 positions.
5A per contact.
Through hole, right angle.
Gold (flash).
Shell size 1 (DE, E).
UL94 V-0.
