| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
720 pcs
|
720 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
360 pcs
|
360 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Industrial Grade | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

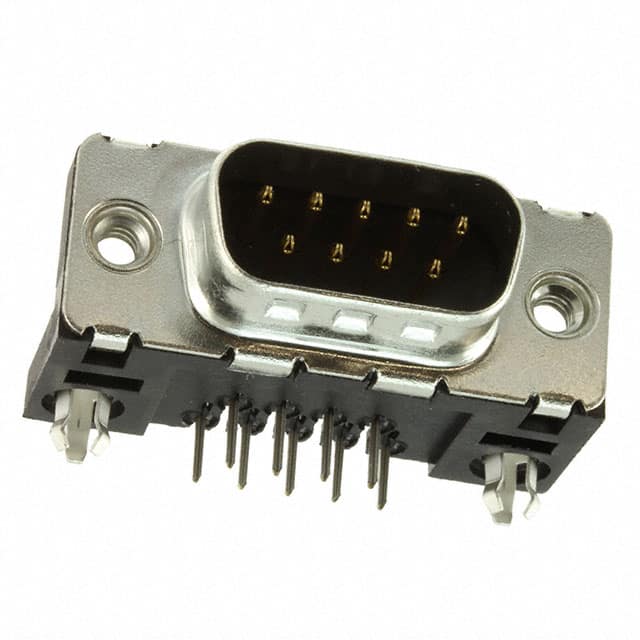

This D-Sub connector plug from Amphenol ICC features 9 positions arranged in 2 rows, with a DE (E) shell size. It is designed for through-hole, right angle mounting with solder termination, making it suitable for perpendicular board-to-cable connections. The contacts are rated for 5A per contact and feature a gold or gold GXT™ finish with 30µin thickness for reliable conductivity and corrosion resistance.
The shell is constructed from steel with a tin-nickel plating, providing durability and EMI shielding. The insulator material meets UL94 V-0 flammability rating. Included features such as board lock, grounding indents, and mounting brackets facilitate secure attachment and improve signal integrity. The flange feature uses housing/shell (4-40) threads for mating hardware. This connector is commonly used in industrial control, data communication, and test equipment applications requiring a compact and reliable D-Sub interface.
9 positions arranged in 2 rows.
5A per contact.
Through hole, right angle mounting with solder termination.
Gold or Gold, GXT™ with 30µin (0.76µm) thickness.
Steel with tin-nickel plating.
RoHS3 Compliant (unverified, treat with low confidence).
UL94 V-0.
