| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,020 pcs
|
1020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

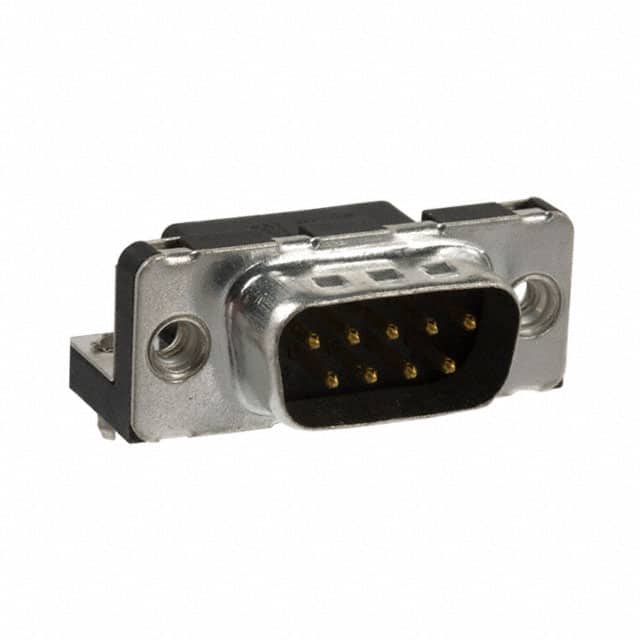

The D09P33E4GX00LF is a D-Sub plug connector from Amphenol ICC, designed for reliable signal connectivity in industrial and commercial applications. This connector features 9 positions arranged in 2 rows, with male pin contacts that are gold flashed for corrosion resistance and reliable electrical performance.
The connector is configured for through hole, right angle mounting, making it suitable for PCB applications where space is constrained. The solder termination ensures secure electrical connections. The shell is made of steel with a tin-nickel plated finish, providing durability and EMI shielding. The shell size is DE-9 (1).
Key features include board locks, grounding indents, and mounting brackets for secure attachment to the PCB. The backset spacing is 0.318 inches (8.08mm). The connector is rated for 5A per contact and the insulator material has a UL94 V-0 flammability rating.
This connector is RoHS3 compliant and REACH unaffected, making it suitable for use in environments requiring regulatory compliance. It is commonly used in data communication, industrial control, and instrumentation applications.
9 positions.
5A per contact.
Through hole, right angle.
D-Sub.
Gold (flash).
Steel, Tin-Nickel Plated.
UL94 V-0.
