| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
360 pcs
|
360 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flammability Rating | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material | |
| Shell Material, Finish | |
| Shell Size | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

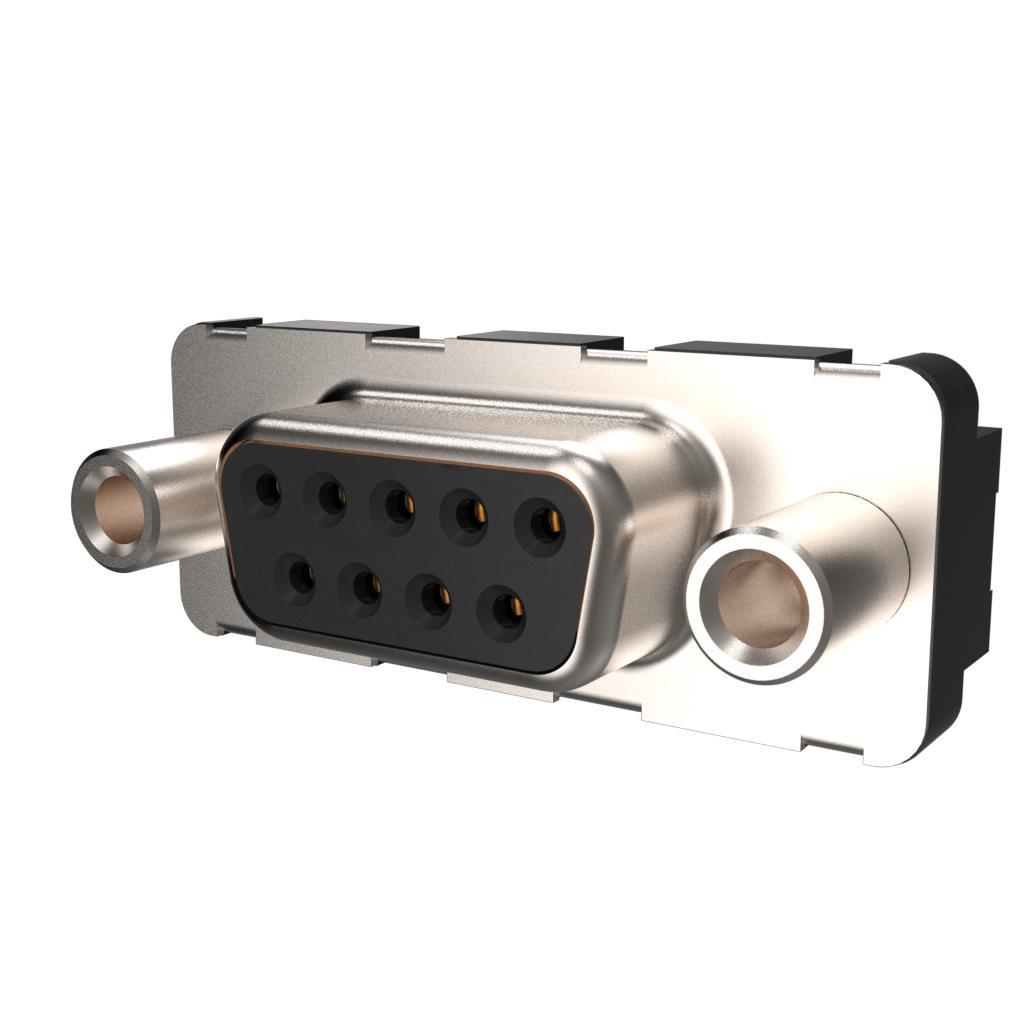

The D09P24B6PA00LF is a 9-position D-Sub plug connector from Amphenol ICC, designed for reliable signal interconnections. It features male pins arranged in 2 rows within a shell size 1 (DE, E) layout. The connector uses through hole mounting with solder termination, making it suitable for permanent PCB attachment.
Electrical performance includes a current rating of 5A per contact with gold-plated contacts (30.0µin thickness) for corrosion resistance and reliable low-level signal transmission. The shell is constructed from steel with a tin-nickel plating, providing durability and EMI shielding. Grounding indents are included for enhanced grounding.
The insulator material meets UL94 V-0 flammability rating, ensuring safety in electronic assemblies. The flange feature is housing/shell unthreaded, typical for standard D-Sub mounting. This connector is RoHS3 compliant and has an MSL of 1 (unlimited).
Plug, Male Pins; D-Sub style.
9 positions arranged in 2 rows.
5A per contact.
Through hole mounting with solder termination.
Gold finish, 30.0µin (0.76µm) thickness.
Steel, Tin-Nickel plated.
UL94 V-0.
