| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
660 pcs
|
660 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
56 pcs
|
56 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

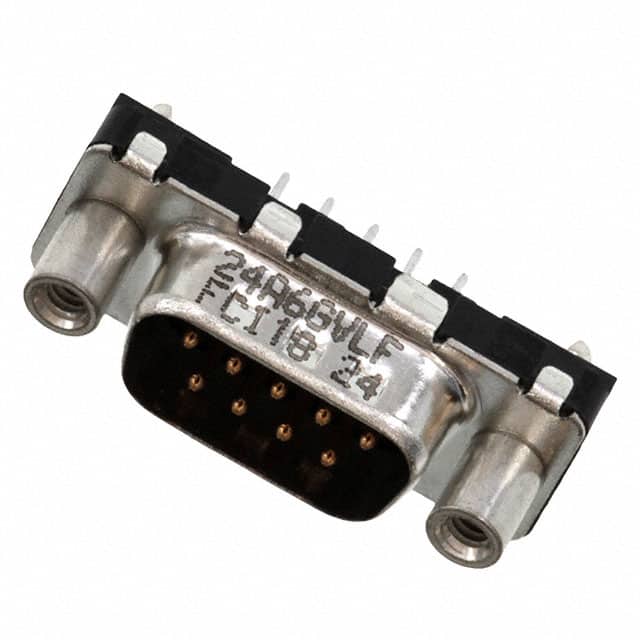

The Amphenol ICC D09P24A6GV00LF is a D-Sub plug connector with 9 male pins arranged in 2 rows. It uses through hole mounting with solder termination for secure attachment to a PCB. The connector features a steel shell with tin-nickel plating and a mating flange with female screwlocks (4-40) for robust coupling.
Electrical rating is 5A per contact with a gold or GXT™ contact finish of 30µin thickness, ensuring reliable signal transmission. The plastic body is rated UL94 V-0 for flammability. Additional features include board locks for mechanical retention and grounding indents for EMI shielding.
This connector is suitable for general-purpose D-Sub applications requiring a standard 9-pin DE-9 (E size) layout. The through hole design allows for hand or wave soldering in industrial and commercial electronic assemblies.
9 positions arranged in 2 rows.
5A per contact.
Through hole with solder termination.
Gold or Gold GXT™, 30µin (0.76µm) thickness.
Steel with tin-nickel plating.
Yes, it includes board lock and grounding indents as features.
UL94 V-0.
