| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
180 pcs
|
180 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

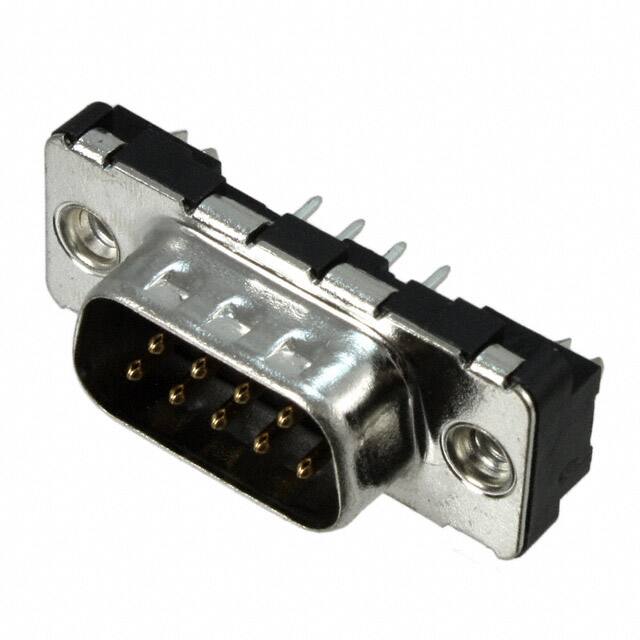

The Amphenol ICC D09P24A4GX00LF is a standard D-Sub connector assembly featuring a plug (male pin) configuration with 9 positions arranged in 2 rows. It is designed for through hole mounting with solder termination, making it suitable for vertical PCB mounting in a wide range of industrial and commercial applications.
The connector uses signal contacts with gold flash finish for reliable electrical performance. Each contact is rated for 5 A current. The shell is made of steel with a tin-nickel plated finish, and the connector layout is DE-9 (shell size 1). It includes board lock and grounding indent features for secure attachment and improved EMI performance. The insulator material has a UL94 V-0 flammability rating.
Plug, Male Pins; D-Sub style.
9 positions arranged in 2 rows.
Through hole mounting with solder termination.
5 A per contact.
Gold flash.
UL94 V-0.
