| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
690 pcs
|
690 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

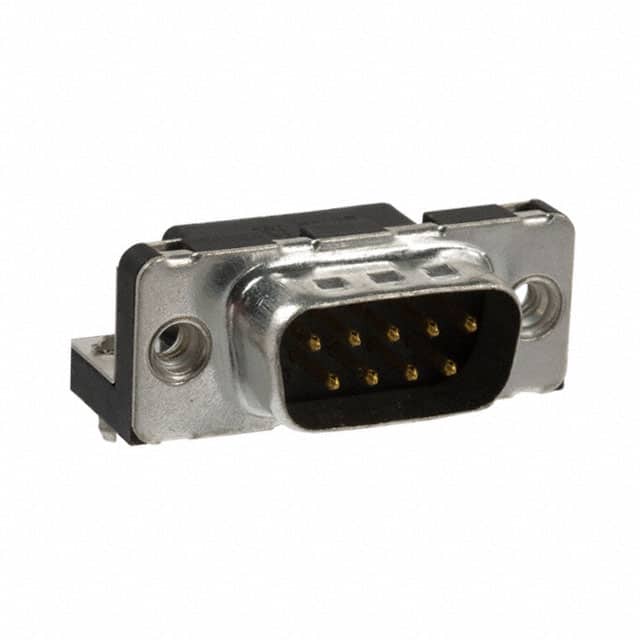

The Amphenol ICC D09P13A4GX00LF is a 9-position D-Sub plug connector designed for reliable signal interconnection in a compact DE (E) shell size. It features male pins arranged in 2 rows with gold flash contact finish, ensuring good conductivity and corrosion resistance.
This connector uses through-hole, right-angle mounting with solder termination, making it suitable for PCB applications where space constraints require a low-profile right-angle interface. The steel shell with tin-nickel plating provides durability and EMI shielding. Additional features include board locks, grounding indents, and mounting brackets for secure attachment.
The D09P13A4GX00LF is rated for 5A per contact and has a UL94 V-0 flammability rating for the insulator material. It is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited). The backset spacing is 0.409 inches (10.40 mm).
It is a D-Sub plug with male pins.
It has 9 positions arranged in 2 rows.
It is rated at 5A per contact.
It uses through-hole, right-angle mounting with solder termination.
The shell size is 1 (DE, E).
The insulator material has a UL94 V-0 rating.
Yes, it is listed as RoHS3 compliant.
