Mfr Part #:

D02-M15SAG-21L9E

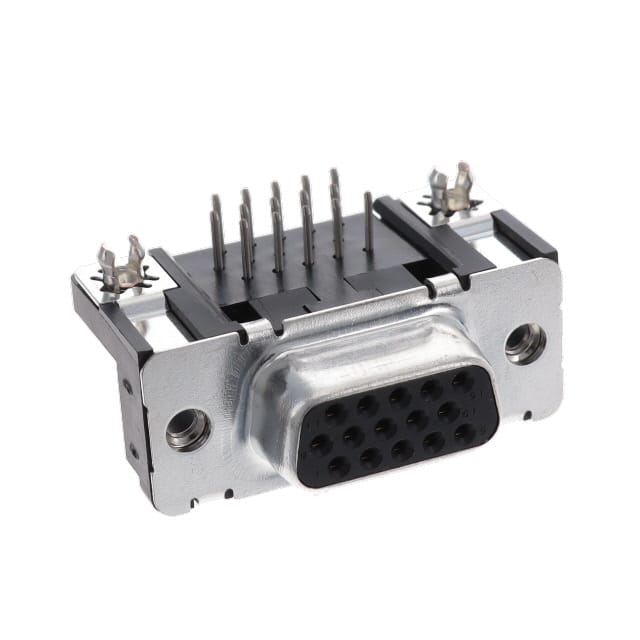

Name: D02-M15SAG-21L9E
Brand: JAE Electronics
SKU: D02-M15SAG-21L9E

Mfr Name: JAE Electronics

Description:

CONN 15 POS SCKT PCB R/A HDR

Stock on Request

D02-M15SAG-21L9E Description

Short technical summary and product information.

CONN 15 POS SCKT PCB R/A HDR

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

L17HTHES4R4C

Amphenol ICC

CONN D-SUB HD RCPT 15P R/A SLDR

L17HTHES4R1C

Amphenol ICC

CONN D-SUB HD RCPT 15P R/A SLDR

L17HTHES4R2C

Amphenol ICC

CONN D-SUB HD RCPT 15P R/A SLDR

L17HTHES4R4R

Amphenol ICC

CONN D-SUB HD RCPT 15P R/A SLDR

Category	D-Sub Connector Assemblies
Manufacturer Name	JAE Electronics
Backset Spacing	0.350" (8.89mm)
Connector Style	D-Sub, High Density
Connector Type	Receptacle, Female Sockets
Contact Type	Signal
Current Rating (Amps)	3A
Features	Board Lock
Flange Feature	Board Side (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	15
Number of Rows	3
Shell Size, Connector Layout	1 (DE, E) High Density
Termination	Solder
