D01-9953242 Harwin D01-9953242 is a 32-position (1x32) SIP IC socket with a 2.54mm pitch, through hole mounting, and wire wrap termination.
Mfr Part #:

D01-9953242

Available from 1 distributors
Mfr Name: Harwin Inc.
Harwin Inc.
Harwin D01-9953242 is a 32-position (1x32) SIP IC socket with a 2.54mm pitch, through hole mounting, and wire wrap termination.
✓ Total Stock: 125 pcs

D01-9953242 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
125 pcs
On Request
125 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

D01-9953242 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
Contact Finish
Contact Finish Thickness
Contact Material
Housing Material
Mounting Type
Number of Positions
Number of Positions or Pins (Grid)
Operating Temperature
Pitch
Termination
Type
Voltage Rating
View Similar Products (0)

D01-9953242 Description

Short technical summary and product information.

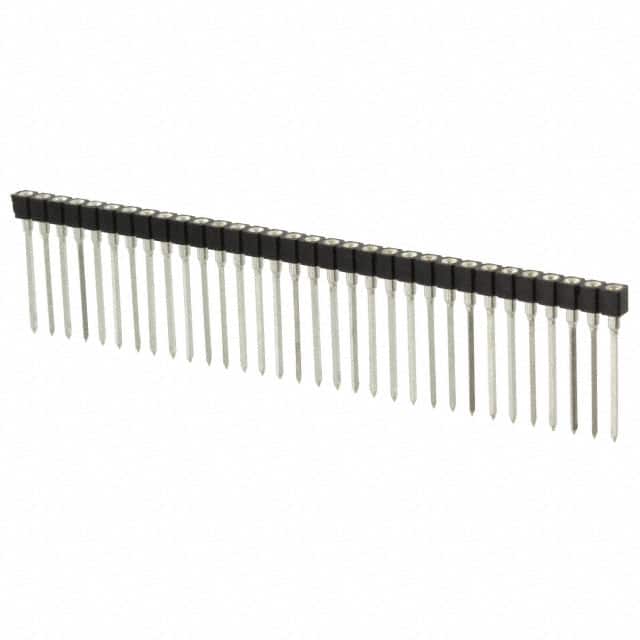

The Harwin D01-9953242 is a 32-position single in-line (SIP) IC socket designed to accommodate integrated circuits and other components with connection pins. It features a 2.54mm (0.100") pitch and is intended for through hole mounting with wire wrap termination.



The socket uses machined female contacts with a gold-plated contact finish, housed in a glass-filled PCT (Polycyclohexylenedimethylene Terephthalate) thermoplastic housing. The contact material is beryllium copper. The socket is rated for an operating temperature range of -55°C to 125°C.



Electrical ratings include a maximum current of 3A per contact (one contact loaded at 25°C ambient) and a maximum contact resistance of 10mΩ initially. The dielectric withstanding voltage is 1,000V rms minimum, and the voltage rating is 100V rms / 150V DC.

D01-9953242 Quick Information

Product Type: IC Socket
Canonical Name: Harwin D01-9953242 32-Position (1x32) SIP IC Socket, Through Hole, Wire Wrap, Gold Contact Finish
Subcategory: SIP Socket

D01-9953242 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

D01-9953242 Features

  • 32-position (1x32) SIP IC socket.
  • 2.54mm (0.100") pitch spacing.
  • Through hole mounting with wire wrap termination.
  • Gold-plated beryllium copper contacts.
  • Rated for -55°C to 125°C operation.

D01-9953242 Applications

  • Accommodates 32-pin SIP IC packages.
  • Suitable for prototyping and wire wrap boards.
  • Used in high-reliability industrial applications.
  • Ideal for elevated temperature environments.

D01-9953242 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the D01-9953242 have?

The D01-9953242 has 32 positions in a 1x32 single in-line (SIP) configuration.

What is the pitch of this socket?

The pitch is 2.54mm (0.100").

What is the current rating of the D01-9953242?

The current rating is 3A max per contact with one contact loaded at 25°C ambient, and 1.5A max per contact with all contacts loaded at 25°C ambient.

What is the voltage rating of this IC socket?

The voltage rating is 100V rms / 150V DC.

What is the mounting type for the D01-9953242?

The mounting type is through hole.

What is the operating temperature range?

The operating temperature range is -55°C to 125°C.

What is the contact material and finish?

The contact material is beryllium copper. The datasheet specifies a gold-plated contact finish, though the existing database lists tin.
