| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
349 pcs
|
349 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
28 pcs
|
28 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Termination | |
| Lead Style | |
| Military Grade | |
| Pin or Socket |

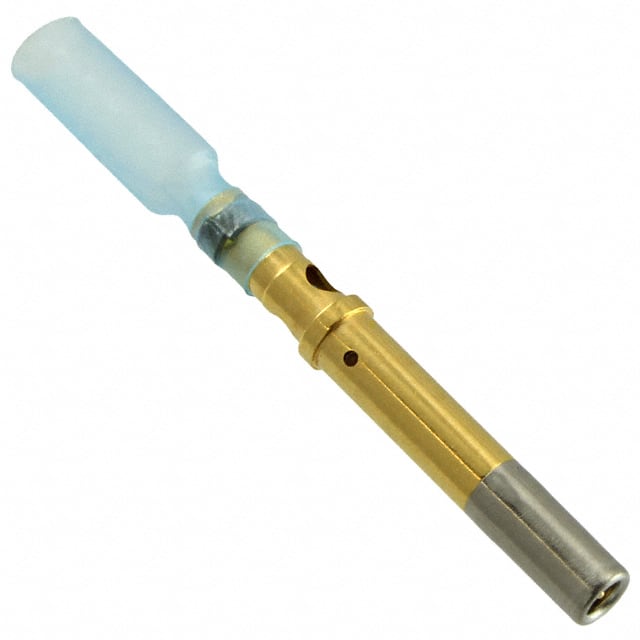

The D-602-0141 is a socket contact from TE Connectivity's SolderTacts series. The contact body is made of beryllium copper and finished with a 50.0µin (1.27µm) gold plating, providing a low-resistance, corrosion-resistant mating surface. The socket configuration accepts a corresponding pin contact.
This contact uses solder termination, leveraging SolderTacts' controlled reflow-solder technology. The one-piece, prefluxed solder preform simplifies installation, reduces operator sensitivity, and provides simultaneous electrical connection and strain relief. SolderTacts contacts are designed for terminating coaxial cables, shielded wires, and twisted pairs.
By integrating a 360° shield design, SolderTacts contacts help reduce crosstalk and improve signal integrity, which is critical for RF and digital signal applications. The solder termination approach eliminates the need for crimping tools, cutting down on processing time and installed cost. This contact is suitable for use in aerospace, defense, marine, and other high-reliability environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $45.77 | $45.77 |
| 10+ | $38.90 | $38.90 |
| 25+ | $36.46 | $36.46 |
| 50+ | $34.72 | $34.72 |
| 100+ | $33.07 | $33.07 |
| 250+ | $31.00 | $31.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact is made of beryllium copper.
The contact has a gold finish.
The gold plating thickness is 50.0µin (1.27µm).
It is a socket contact.
Solder termination.
