| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Forward Voltage (Max) | |
| Halogen Free | |
| Impedance (Max) (Zzt) | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Package / Case | |
| Power | |
| Power Dissipation | |
| Reverse Leakage Current (Max) | |
| SVHC Present | |
| Supplier Device Package | |
| Tape & Reel | |
| Terminal Finish | |
| Tolerance | |
| Voltage | |
| Weight | |
| Zener Impedance (Max) | |
| Zener Voltage Range |

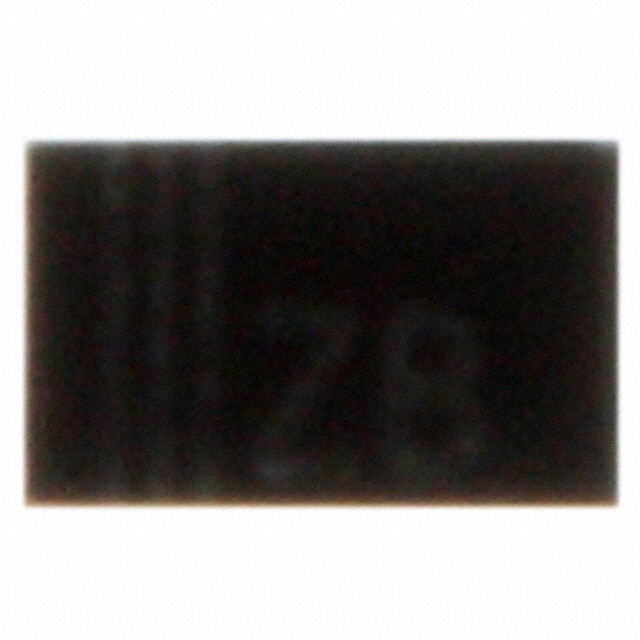

The CZRER52C5V6 is a Zener diode from Comchip Technology designed for voltage regulation and protection in compact surface mount applications. It offers a nominal Zener voltage of 5.6V with a range of 5.32V to 5.88V at a test current of 5mA. The device features a maximum Zener impedance of 40 Ω and a low forward voltage drop of 900 mV at 10mA.
This diode is rated for a maximum power dissipation of 150mW and can operate over a junction temperature range of -55°C to 125°C. It is housed in an ultra-thin 0503 (1308 Metric) package with gold-plated terminals, making it suitable for high-density PCB designs. The part is RoHS3 compliant, lead-free, and halogen-free.
Typical applications include voltage clamping, overvoltage protection, and reference voltage generation in portable electronics, IoT devices, and other low-power circuits. The device is also ESD rated per IEC 61000-4-2, adding robustness for handling and operation.
The nominal Zener voltage is 5.6V, with a range of 5.32V to 5.88V at a test current of 5mA.
The maximum power dissipation is 150mW.
The maximum forward voltage is 900 mV at a forward current of 10mA.
The operating temperature range is -55°C to 125°C.
It comes in a 0503 (1308 Metric) surface mount package, also known as SOD-723F.
Yes, it is RoHS3 compliant, lead-free, and halogen-free as per the datasheet.
