| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Halogen Free | |
| Impedance (Max) (Zzt) | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Supplier Device Package | |
| Tape & Reel | |
| Termination Style | |
| Tolerance | |
| Voltage | |
| Weight |

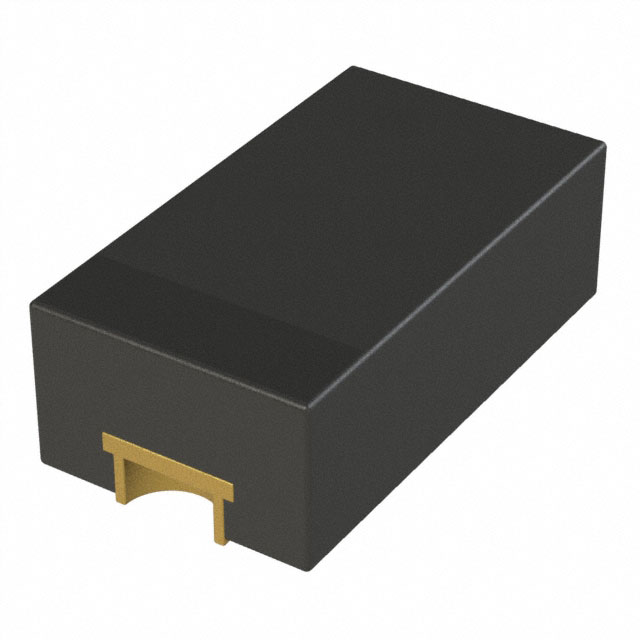

The Comchip Technology CZRER52C4V7-HF is a surface mount Zener diode designed for voltage regulation and protection applications. It provides a nominal zener voltage of 4.7V at a test current of 5mA, with a guaranteed range of 4.47V to 4.94V and a tolerance of ±5%.
Electrical characteristics include a maximum forward voltage of 900mV at 10mA forward current, reverse leakage current of up to 5µA at 2V reverse voltage, and maximum dynamic impedances of 78Ω at the test current (5mA) and 500Ω at the knee current (1mA). The device is rated for 150mW maximum power dissipation at 25°C ambient temperature.
The diode is housed in a miniature 0503 (SOD-723F) surface mount package, making it suitable for compact PCB designs. It features gold-plated terminals that are solderable per MIL-STD-750 method 2026, and polarity is indicated by a cathode band. The operating junction and storage temperature range is -55°C to +150°C.
This component is RoHS compliant, halogen free, and designed as a lead-free (Pb free) product.
| Qty | Low | High |
|---|---|---|
| 4,000+ | $0.03 | $0.03 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal zener voltage is 4.7V at a test current of 5mA, with a range of 4.47V to 4.94V and a tolerance of ±5%.
The maximum power dissipation is 150mW at an ambient temperature of 25°C.
The device is packaged in a surface mount 0503 (SOD-723F) package.
The maximum forward voltage drop is 900mV at a forward current of 10mA.
The operating junction and storage temperature range is -55°C to +150°C.
Yes, the device is RoHS3 compliant and also halogen free.
