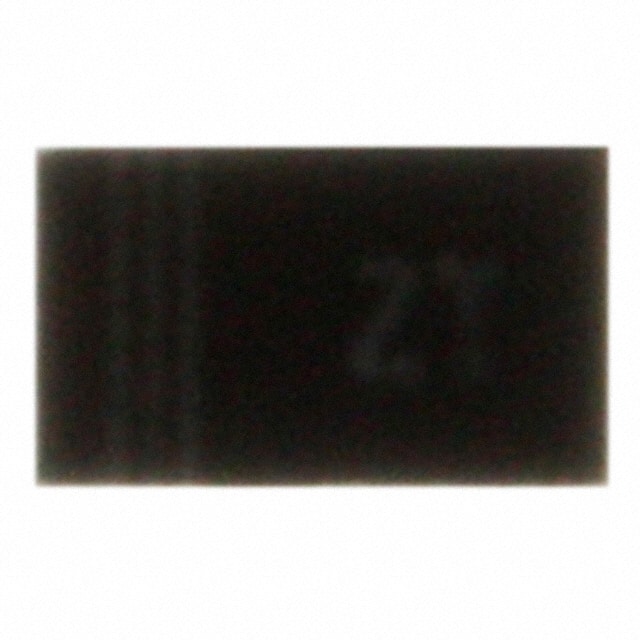

The CZRER52C22 is a Zener diode from Comchip Technology with a nominal Zener voltage of 22V and ±5% tolerance. It is rated for a maximum power dissipation of 150mW at 25°C ambient temperature. The device exhibits a maximum forward voltage of 0.9V at 10mA forward current and a reverse leakage current of 100nA at 17V reverse voltage. The Zener impedance is 55Ω at 5mA test current. It also features an ESD capability of 8kV per IEC 61000-4-2, making it suitable for protection applications.
This Zener diode is housed in a compact surface mount package: 0503 (1308 Metric), also known as SOD-723F. The package is molded plastic with gold-plated terminals that are solderable per MIL-STD-750, method 2026. Polarity is indicated by a cathode band. The device weighs approximately 0.002 grams.
The CZRER52C22 is RoHS compliant and halogen free. It operates over a temperature range of -55°C to 125°C. Common applications include voltage regulation, overvoltage protection, and reference voltage generation in low-power and space-constrained designs.
The nominal Zener voltage is 22V with a tolerance of ±5% (range 20.90V to 23.10V).
Maximum forward voltage is 0.9V at 10mA forward current.
It is available in a surface mount 0503 (1308 Metric) package, also known as SOD-723F.
Maximum power dissipation is 150mW at 25°C ambient temperature.
The operating temperature range is -55°C to 125°C.
The device has an ESD capability of 8kV per IEC 61000-4-2.
Maximum reverse leakage current is 100nA at 17V reverse voltage.
