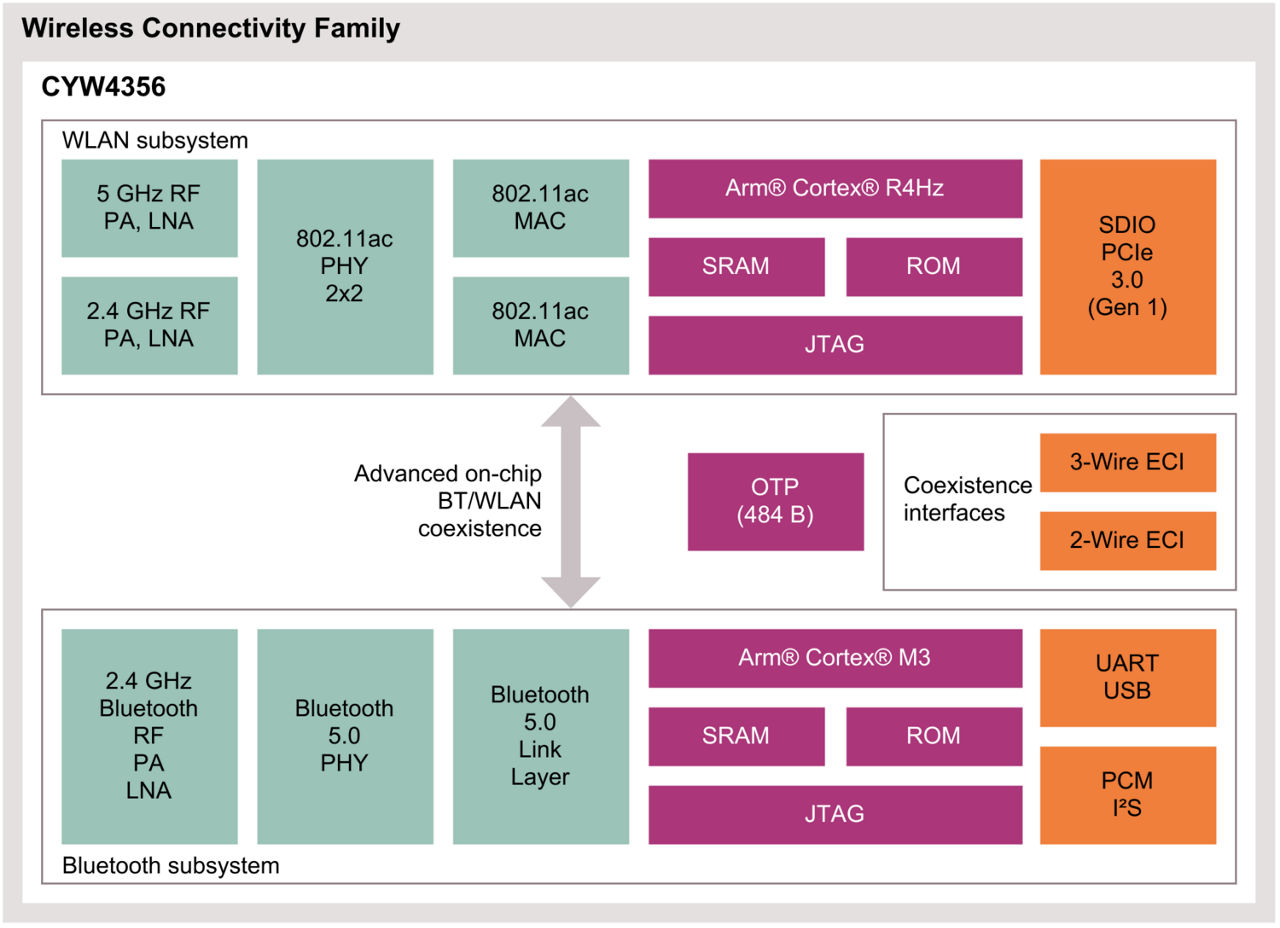

The Infineon CYW4356XKUBGT is a highly integrated dual-band (2.4 GHz and 5 GHz) 5G Wi-Fi 2x2 MIMO MAC/PHY/Radio System-on-a-Chip, also featuring integrated Bluetooth 5.0. This device supports IEEE 802.11ac standards, offering data rates up to 867 Mbps in 20 MHz, 40 MHz, and 80 MHz channels, and is backward compatible with IEEE 802.11a/b/g/n.
Key electrical features include on-chip transmit power amplifiers and low noise amplifiers for both 2.4 GHz and 5 GHz bands. For host connectivity, it provides multiple interface options: SDIO v3.0 (4b or 1b modes), PCIe v3.0 (Gen1 speeds), a high-speed 4-wire UART, and USB 2.0 full-speed. The chip also includes advanced power management and enhanced collaborative coexistence hardware mechanisms for optimized WLAN and Bluetooth performance.
This component is designed for applications requiring robust wireless connectivity, supporting simultaneous voice, video, and data transmission. It also includes support for wireless charging.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The CYW4356XKUBGT supports IEEE 802.11ac.
The CYW4356XKUBGT integrates Bluetooth 5.0.
The CYW4356XKUBGT operates on both 2.4 GHz and 5 GHz frequency bands.
The CYW4356XKUBGT supports data rates up to 867 Mbps.
The CYW4356XKUBGT offers SDIO v3.0, PCIe v3.0, UART, and USB 2.0 host interface options.
Yes, the CYW4356XKUBGT supports wireless charging.
