Mfr Part #:

CYW43012C0WKWBGT

Mfr Name: Infineon

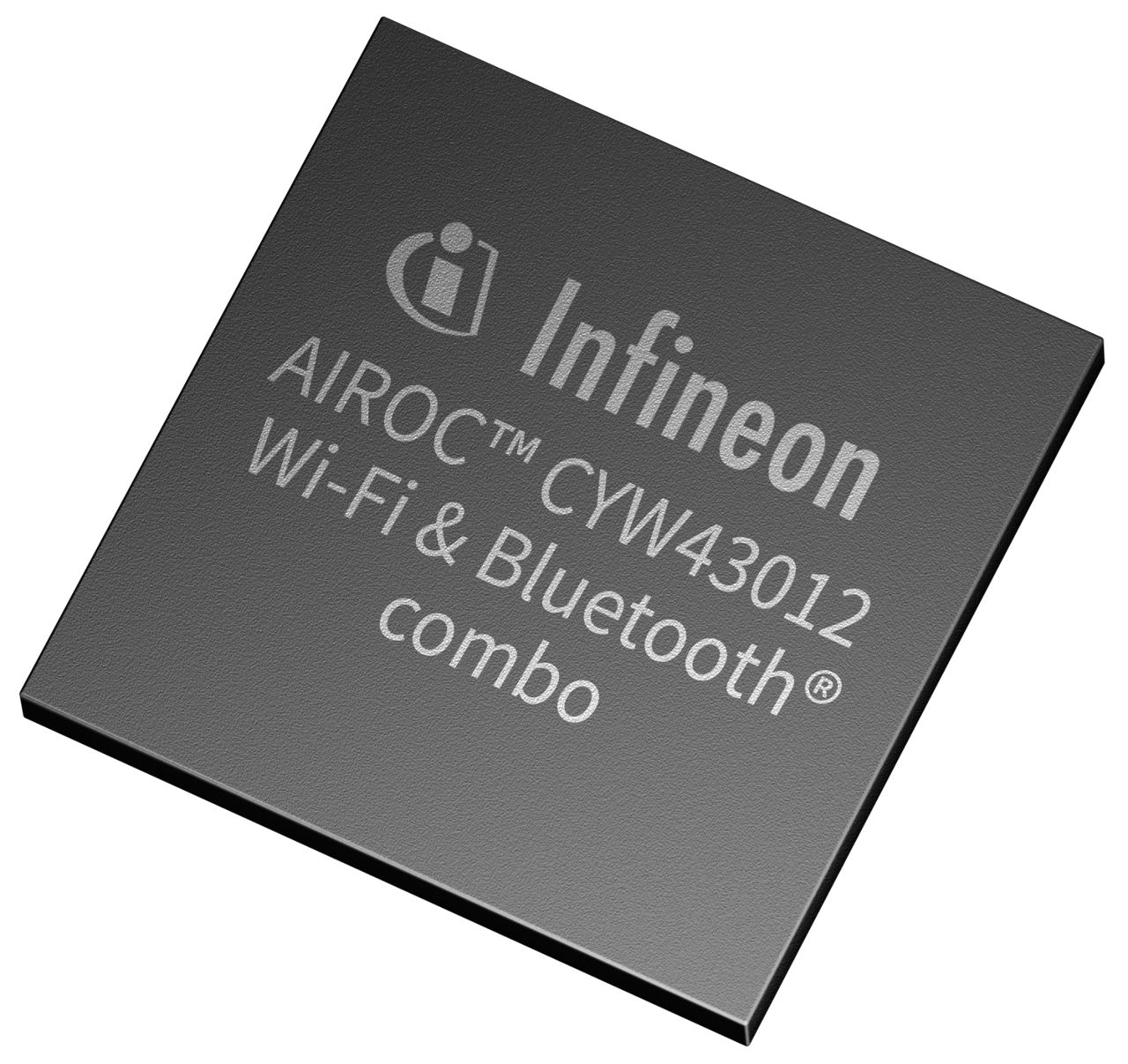

The Infineon CYW43012C0WKWBGT is a single-chip module offering IEEE 802.11n Wi-Fi and Bluetooth 5.0 connectivity for IoT applications. It supports dual-band operation and low power consumption.

✓ Total Stock: 5,000 pcs

$ Price Range: $10.48

CYW43012C0WKWBGT Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Flip Electronics ✓ Non-Authorised Inventory information	5,000 pcs On Request	5000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

CYW43012C0WKWBGT Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Infineon
Interface	SDIO v2.0, SDIO v3.0
Mounting Type	Surface Mount
Storage Temperature	°C ~ °C
Tape & Reel	No

View Similar Products (0)

CYW43012C0WKWBGT Description

Short technical summary and product information.

The Infineon CYW43012C0WKWBGT is an ultra-low power, 28nm wireless connectivity module designed for IoT applications. It integrates a single-stream, dual-band IEEE 802.11n compliant Wi-Fi sub-system and a Bluetooth 5.0 compliant BT sub-system, along with an advanced coexistence engine for optimal performance.

Key Wi-Fi features include full IEEE 802.11a/b/g/n compatibility, 802.11ac-friendliness with MCS8 support for 20 MHz channels, and PHY data rates up to 72.2 Mbps (802.11n) or 78 Mbps (802.11ac). It supports dual-band 2.4 GHz and 5 GHz operation with on-chip power and low-noise amplifiers.

For Bluetooth, it is compliant with Bluetooth 5.0, offering LE 2 Mbps data rate and supporting features like LE Secure Connections and LE Privacy 1.2. It supports BDR, EDR, and BLE modes, along with adaptive frequency hopping for interference reduction. The module includes interfaces such as SDIO v2.0/v3.0, UART, and PCM/I2S for audio data.

Available in 251-pin WLCSP and upcoming 106-ball WLBGA packages, the CYW43012 is suitable for battery-powered IoT devices like IP cameras, wearables, smart home devices, and audio equipment.

CYW43012C0WKWBGT Quick Information

Product Type: Wi-Fi and Bluetooth Module

Canonical Name: CYW43012 Wi-Fi and Bluetooth 5.0 Module

Subcategory: Wi-Fi and Bluetooth

CYW43012C0WKWBGT Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

CYW43012C0WKWBGT Estimated Pricing

Qty	Low	High
1+	$10.48	$10.48

Estimated market price range - modelled values for guidance only, not live distributor offers.

CYW43012C0WKWBGT Features

Integrated Wi-Fi 802.11n and Bluetooth 5.0
Dual-band 2.4 GHz and 5 GHz Wi-Fi support
Bluetooth 5.0 LE 2 Mbps data rate
Ultra-low power 28nm design
WLCSP and WLBGA package options

CYW43012C0WKWBGT Applications

Ideal for battery-powered IoT devices
Suitable for IP cameras and wearables
Used in smart home applications
Supports audio streaming applications

CYW43012C0WKWBGT FAQs

7 frequently asked questions generated from this part’s specifications.

What Wi-Fi standards does the CYW43012C0WKWBGT support?

The CYW43012C0WKWBGT supports IEEE 802.11a/b/g/n standards and is 802.11ac-friendly.

What is the maximum Wi-Fi data rate for the CYW43012C0WKWBGT?

The maximum Wi-Fi data rate is 72.2 Mbps for 802.11n (MCS7) and 78 Mbps for 802.11ac (MCS8).

What Bluetooth version is integrated into the CYW43012C0WKWBGT?

The module is compliant with Bluetooth 5.0.

What is the Bluetooth Low Energy (LE) data rate?

The Bluetooth LE data rate is up to 2 Mbps.

What package options are available for the CYW43012C0WKWBGT?

The CYW43012C0WKWBGT is available in a 251-pin WLCSP package, with a 106-ball WLBGA package coming soon.

What is the RoHS status of the CYW43012C0WKWBGT?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The Moisture Sensitivity Level (MSL) is Level 1.
