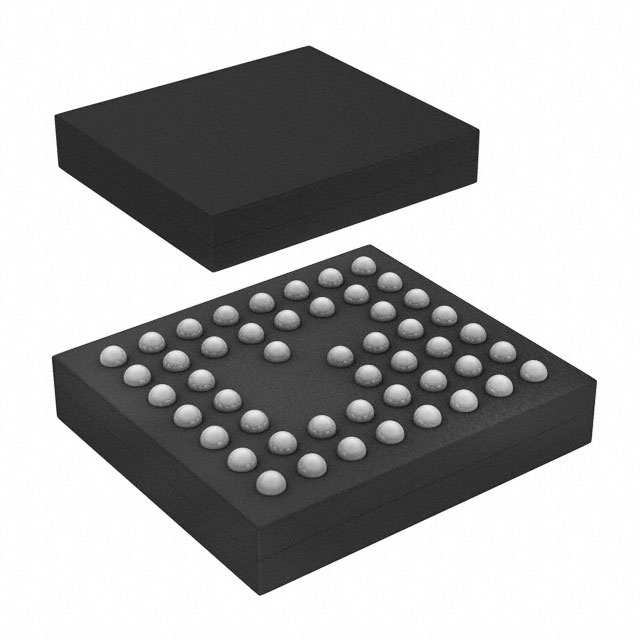

CYW20707UA1KFFB4G The Cypress Semiconductor CYW20707UA1KFFB4G is an RF Transceiver IC with integrated MCU, supporting Bluetooth v4.2. It operates at 2.4GHz and requires a 3.3V supply.
Mfr Part #:

CYW20707UA1KFFB4G

Available from 3 distributors
Mfr Name: Cypress Semiconductor
Cypress Semiconductor
The Cypress Semiconductor CYW20707UA1KFFB4G is an RF Transceiver IC with integrated MCU, supporting Bluetooth v4.2. It operates at 2.4GHz and requires a 3.3V supply.
✓ Total Stock: 90,000 pcs
$ Price Range: $2.22

CYW20707UA1KFFB4G Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
65,000 pcs
On Request
65000 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
15,000 pcs
On Request
15000 pcs On Request 1 On Request On Request 17+ On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
10,000 pcs
On Request
10000 pcs On Request 1 On Request On Request 17+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CYW20707UA1KFFB4G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Data Rate (Max)
Frequency
GPIO
Mounting Type
Operating Temperature
Protocol
Sensitivity
Serial Interfaces
Storage Temperature
Supplier Device Package
Tape & Reel
Type
Voltage Supply
View Similar Products (0)

CYW20707UA1KFFB4G Description

Short technical summary and product information.

The Cypress Semiconductor CYW20707UA1KFFB4G is a versatile RF Transceiver IC featuring integrated MCU capabilities, designed for Bluetooth v4.2 applications. It operates in the 2.4GHz frequency band, offering a maximum data rate of 2Mbps and an output power of 9dBm. The device includes a receiver sensitivity of -96.5dBm, making it suitable for various wireless communication tasks.



This IC supports multiple serial interfaces, including I²S, SPI, and UART, along with 8 GPIO pins, providing flexibility for system integration. It operates with a supply voltage of 3.3V and has typical current consumption ratings of 26.4mA for receiving and 60mA for transmitting. The operating temperature range is from -30°C to 85°C.



Packaged in a 49-VFBGA/FCBGA format and designed for surface mounting, the CYW20707UA1KFFB4G is suitable for compact electronic designs. Its RoHS3 compliant status and MSL Level 3 rating are important considerations for manufacturing and environmental compliance.

CYW20707UA1KFFB4G Quick Information

Product Type: RF Transceiver IC
Canonical Name: CYW20707UA1KFFB4G RF Transceiver IC with MCU
Subcategory: Audio Special Purpose

CYW20707UA1KFFB4G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 3
REACH Status: REACH Unaffected

CYW20707UA1KFFB4G Estimated Pricing

Qty Low High
1+ $2.22 $2.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

CYW20707UA1KFFB4G Features

  • Bluetooth v4.2 RF Transceiver IC with MCU
  • Operates at 2.4GHz frequency band
  • Supports 2Mbps maximum data rate
  • 9dBm output power and -96.5dBm sensitivity
  • 3.3V supply voltage with serial interfaces

CYW20707UA1KFFB4G Applications

  • Wireless communication modules
  • IoT device connectivity
  • Bluetooth enabled products
  • Embedded system designs

CYW20707UA1KFFB4G FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the CYW20707UA1KFFB4G?

The operating voltage is 3.3V.

What package type is the CYW20707UA1KFFB4G?

The package type is 49-VFBGA, FCBGA.

What is the operating temperature range for this RF Transceiver IC?

The operating temperature range is -30°C to 85°C.

What is the RoHS status of the CYW20707UA1KFFB4G?

The RoHS status is RoHS3 Compliant.
