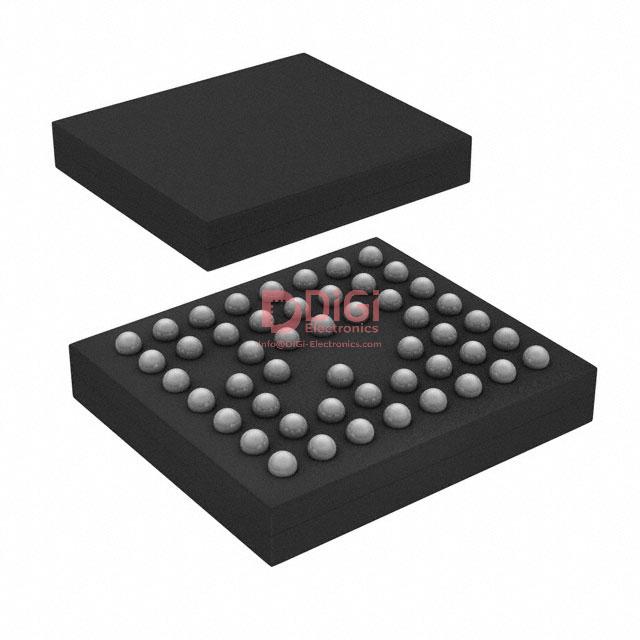

CYW20705A1KWFBGT The Infineon CYW20705A1KWFBGT is an RF Transceiver IC featuring Bluetooth v4.1 connectivity. It operates at 2.4GHz and supports a supply voltage of up to 5.5V.
Mfr Part #:

CYW20705A1KWFBGT

Available from 1 distributors
Mfr Name: Infineon
Infineon
The Infineon CYW20705A1KWFBGT is an RF Transceiver IC featuring Bluetooth v4.1 connectivity. It operates at 2.4GHz and supports a supply voltage of up to 5.5V.
✓ Total Stock: 10,445 pcs
$ Price Range: $12.91

CYW20705A1KWFBGT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
10,445 pcs
On Request
10445 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CYW20705A1KWFBGT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Data Rate (Max)
Frequency
GPIO
Industrial Grade
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Protocol
Sensitivity
Serial Interfaces
Storage Temperature
Supplier Device Package
Tape & Reel
Type
Voltage Supply
View Similar Products (0)

CYW20705A1KWFBGT Description

Short technical summary and product information.

The Infineon CYW20705A1KWFBGT is an RF Transceiver IC designed for Bluetooth applications. It supports Bluetooth v4.1 protocol and operates in the 2.4GHz frequency band.



Key electrical specifications include a maximum data rate of 3Mbps, an output power of 10dBm, and a sensitivity of -91dBm. The device supports SPI, UART, and USB serial interfaces and features 8 GPIO pins. It operates with a supply voltage of 5.5V, drawing 31mA during reception and 65mA during transmission.



This IC is housed in a 50-WFBGA package and is designed for surface mounting. The operating temperature range is from -30°C to 85°C.



This component is suitable for various wireless communication systems requiring Bluetooth connectivity.

CYW20705A1KWFBGT Quick Information

Product Type: RF Transceiver IC
Canonical Name: Infineon CYW20705A1KWFBGT RF Transceiver IC
Subcategory: Bluetooth

CYW20705A1KWFBGT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CYW20705A1KWFBGT Estimated Pricing

Qty Low High
1+ $12.91 $12.91

Estimated market price range - modelled values for guidance only, not live distributor offers.

CYW20705A1KWFBGT Features

  • Bluetooth v4.1 RF transceiver IC
  • Operates at 2.4GHz frequency band
  • Supports 3Mbps maximum data rate
  • 5.5V supply voltage
  • 50-WFBGA surface mount package

CYW20705A1KWFBGT Applications

  • Suitable for Bluetooth wireless communication devices.
  • Used in IoT and wearable technology applications.
  • Ideal for embedded systems with Bluetooth connectivity.
  • Applicable in smart home automation products.
  • Supports low-power Bluetooth transceiver designs.

CYW20705A1KWFBGT FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the CYW20705A1KWFBGT?

-30°C to 85°C

What serial interfaces are supported by the CYW20705A1KWFBGT?

SPI, UART, USB

What is the Bluetooth version supported by this module?

Bluetooth v4.1

What is the package type of the CYW20705A1KWFBGT?

50-WFBGA

What is the RF frequency of this Bluetooth module?

2.4GHz
