| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,871 pcs
|
1871 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Supply Voltage | |
| USB |

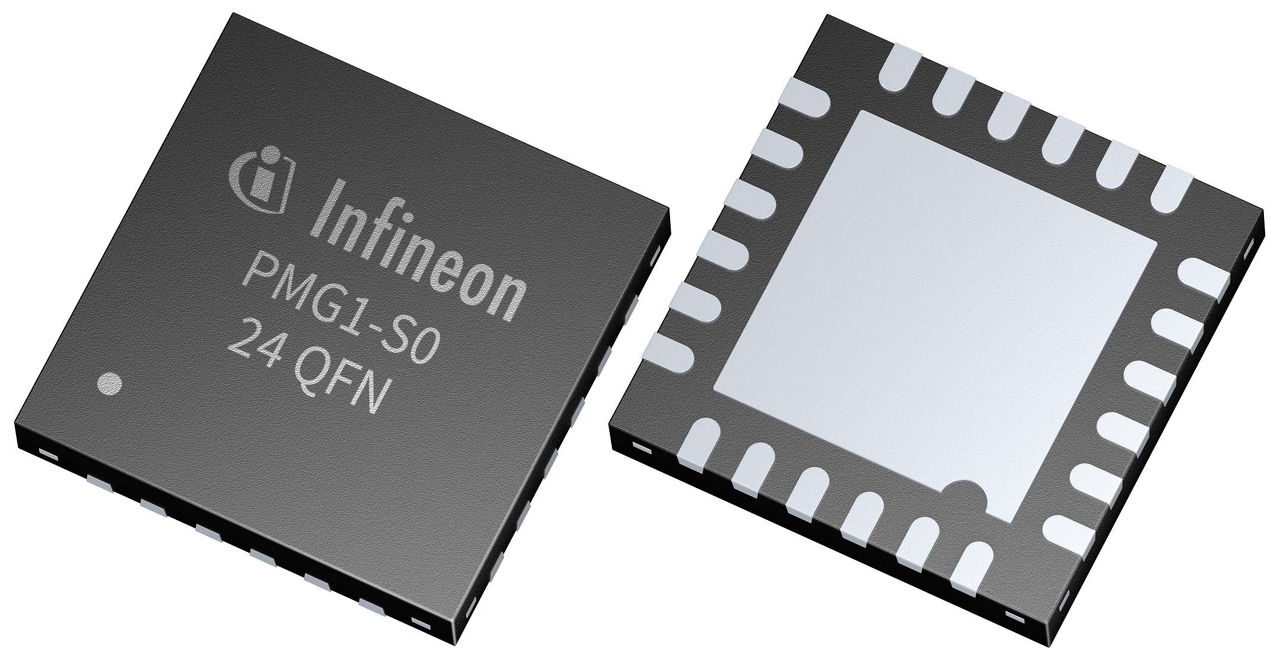

The Infineon CYPM1011-24LQXI is part of the EZ-PD™ PMG1 family of high-voltage USB-C Power Delivery (PD) microcontrollers. This MCU integrates an Arm Cortex-M0+ CPU with a USB-C PD controller and various analog and digital peripherals.
Key electrical specifications include a maximum frequency of 48 MHz, 64 KB of Flash memory, and 8 KB of SRAM. It supports 1 Power Delivery port with a DRP role and features 2x PFET gate drivers. Fault protections include VBUS OVP, UVP, and OCP, with SCP for source configuration. The device supports integrated full-speed USB 2.0 Device with Billboard class support.
The VBUS voltage range is 4-21.5V, with a supply voltage range of 2.7-5.5V and an IO voltage range of 1.71-5.5V. It includes 2 SCB modules configurable as I2C/UART/SPI and 4 TCPWM blocks.
This MCU is housed in a 24-QFN package, making it suitable for embedded systems that provide or consume power from a high-voltage USB-C PD port, leveraging the microcontroller for additional control capabilities.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.98 | $2.98 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The core is an Arm Cortex-M0+.
The maximum operating frequency is 48 MHz.
It has 64 KB of Flash memory.
The SRAM size is 8 KB.
It supports 1 Power Delivery port.
The VBUS voltage range is 4-21.5 V.
It is available in a 24-QFN package.
