Mfr Part #:

CYPD3177-24LQXQ

Mfr Name: CYP

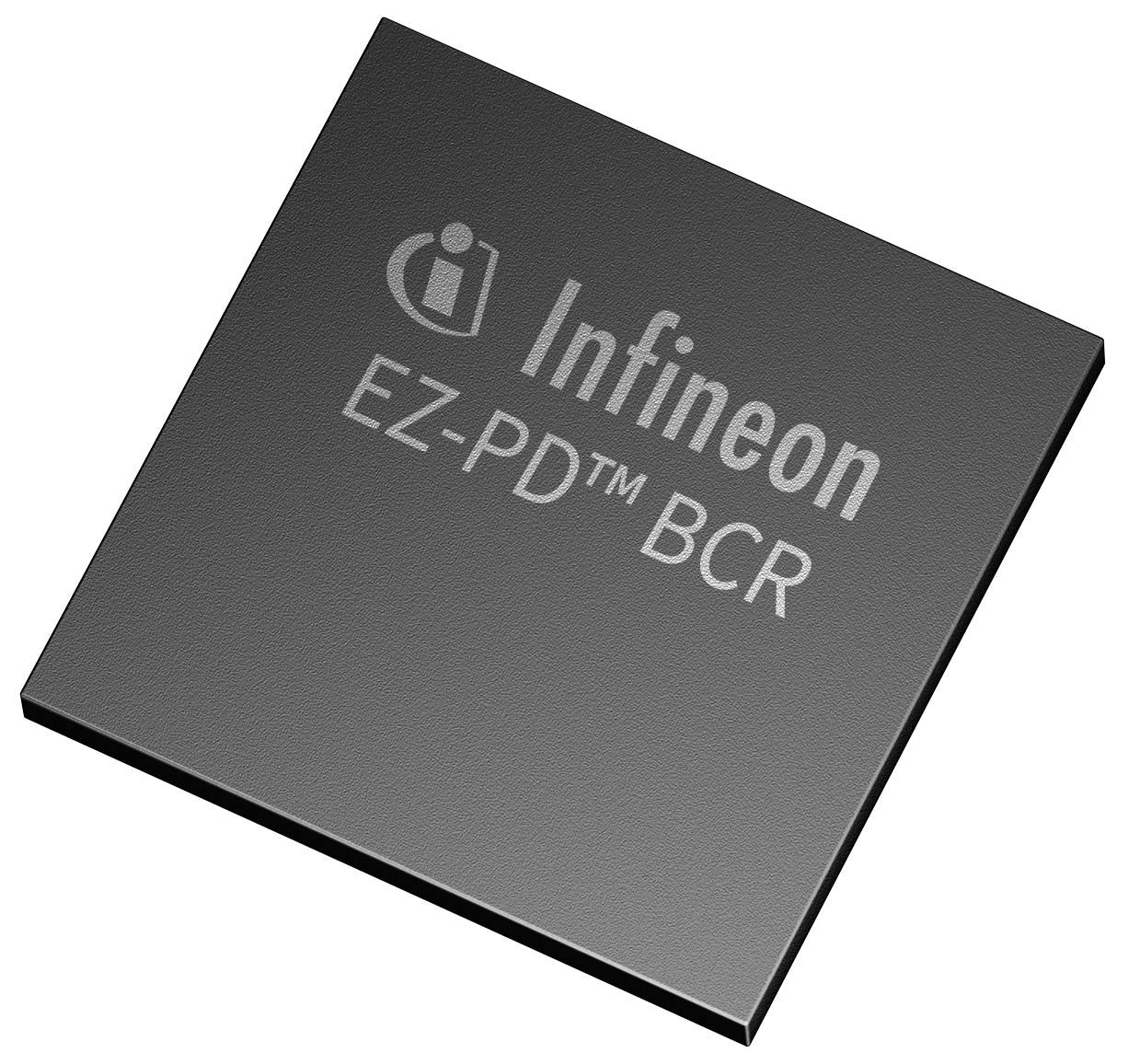

The CYPD3177-24LQXQ is a USB Type-C port controller from CYP, designed for power sink applications. It supports USB PD3.0 and operates from 3.0V to 24.5V.

✓ Total Stock: 99,790 pcs

$ Price Range: $2.07

CYPD3177-24LQXQ Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Optech Co.,Limited ✓ Non-Authorised Inventory information	99,790 pcs On Request	99790 pcs	On Request	1	On Request	On Request	22+	On Request	On Request

CYPD3177-24LQXQ Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	CYP
Lead Style	Smd
Mounting Type	Surface Mount
Operating Temperature	-40°C to +105°C
Voltage	3.0 V to 24.5 V

View Similar Products (0)

CYPD3177-24LQXQ Description

Short technical summary and product information.

The CYPD3177-24LQXQ is a highly integrated, pre-programmed USB Type-C port controller from Cypress Semiconductor, now an Infineon Technologies company. This controller is designed for electronic devices that use legacy barrel connectors or USB micro-B connectors for power, such as drones, smart speakers, and power tools. It complies with the latest USB Type-C and USB Power Delivery (PD) standards, enabling easy conversion of devices to USB-C power delivery without firmware development.

The CYPD3177-24LQXQ integrates a complete USB Type-C transceiver, USB PD policy manager, a load switch controller with soft start, and all necessary termination resistors. It also includes system-level ESD protection. The device operates from 3.0V to 24.5V and is tolerant up to 30V. It supports USB PD3.0 Revision 2.0 Version 1.3 and 5V legacy charging.

This controller is available in a 24-pin QFN package and supports an extended industrial temperature range of -40°C to +105°C. Its features include on-chip overvoltage protection (OVP) and VBUS to CC short protection, providing system-level fault protection. The integrated oscillator eliminates the need for an external clock source.

CYPD3177-24LQXQ Quick Information

Product Type: USB Type-C Port Controller

Canonical Name: CYPD3177-24LQXQ USB Type-C Port Controller

Subcategory: Interface Controllers

CYPD3177-24LQXQ Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

CYPD3177-24LQXQ Estimated Pricing

Qty	Low	High
1+	$2.07	$2.07

Estimated market price range - modelled values for guidance only, not live distributor offers.

CYPD3177-24LQXQ Features

Supports USB Type-C and USB-PD standards.
Operates from 3.0V to 24.5V.
Integrated USB Type-C transceiver and PD policy manager.
Available in a 24-pin QFN package.
Supports extended industrial temperature range.

CYPD3177-24LQXQ Applications

Ideal for power sink applications.
Converts legacy barrel connectors to USB-C.
Suitable for drones and power tools.
Used in smart speakers and rechargeable devices.

CYPD3177-24LQXQ FAQs

6 frequently asked questions generated from this part’s specifications.

What is the operating voltage range for the CYPD3177-24LQXQ?

The CYPD3177-24LQXQ operates from 3.0V to 24.5V.

What package type is the CYPD3177-24LQXQ available in?

The CYPD3177-24LQXQ is available in a 24-pin QFN package.

What is the operating temperature range for the CYPD3177-24LQXQ?

The CYPD3177-24LQXQ supports an extended industrial temperature range from -40°C to +105°C.

What is the RoHS status of the CYPD3177-24LQXQ?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the CYPD3177-24LQXQ?

The Moisture Sensitivity Level (MSL) is 1 Unlimited.

What is the REACH status for the CYPD3177-24LQXQ?

The REACH status is REACH Unaffected.
