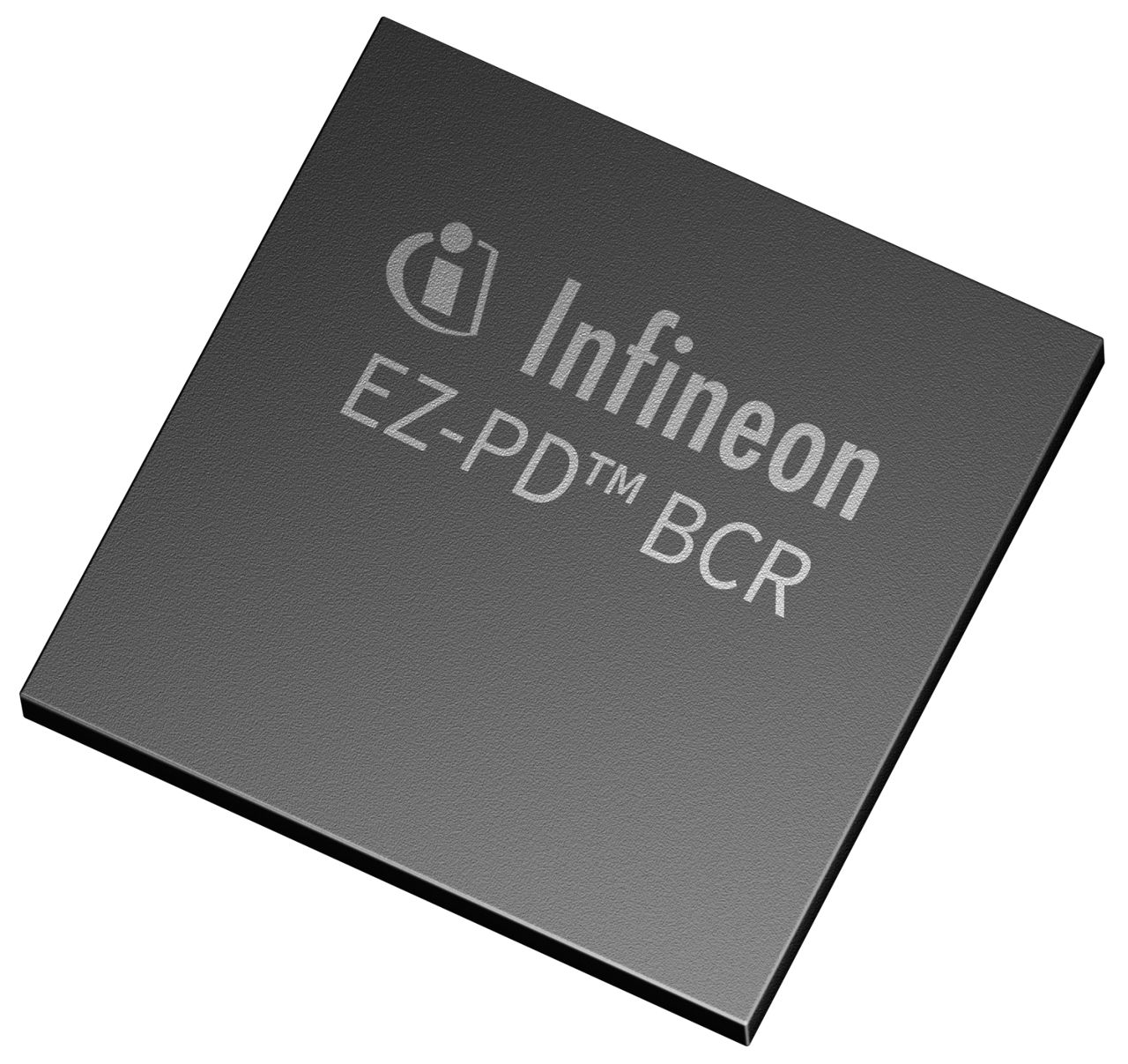

CYPD3176-24LQXQ The Infineon CYPD3176-24LQXQ is a highly-integrated USB Type-C sink port controller. It supports USB PD 3.1 and legacy charging protocols.
Mfr Part #:

CYPD3176-24LQXQ

Available from 1 distributors
Mfr Name: Infineon
Infineon
The Infineon CYPD3176-24LQXQ is a highly-integrated USB Type-C sink port controller. It supports USB PD 3.1 and legacy charging protocols.
✓ Total Stock: 105 pcs
$ Price Range: $2.27

CYPD3176-24LQXQ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
105 pcs
On Request
105 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CYPD3176-24LQXQ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
ESD Protection
Industrial Grade
Medical Grade
Military Grade
Mounting Type
Operating Voltage
Storage Temperature
Tape & Reel
View Similar Products (0)

CYPD3176-24LQXQ Description

Short technical summary and product information.

The Infineon CYPD3176-24LQXQ is a pre-programmed USB Type-C sink port controller designed for power sinks. It is part of the Barrel Connector Replacement (BCR) family and supports ports with or without USB data capability. This controller is ideal for devices with legacy barrel connectors or USB micro-B connectors for power, such as drones, smart speakers, and power tools.



It complies with the latest USB Type-C and USB Power Delivery (PD) standards, enabling easy conversion of devices to USB-C power. The CYPD3176-24LQXQ integrates a USB Type-C transceiver, USB PD policy manager, load switch controller with soft start, termination resistors, and system-level ESD protection. It operates from 3.0 V to 24.5 V and offers integrated overvoltage (OVP), overcurrent (OCP), and over-temperature (OTP) protection.



The device supports USB PD 3.1 Version 1.6, including programmable power supply mode, and one USB Type-C port. It also supports legacy charging protocols like BC1.2, Apple, AFC, and QC 2.0 when connected to USB Type-A ports. System-level fault protection includes VBUS to CC short protection.



The CYPD3176-24LQXQ is available in a 24-pin QFN package and supports an extended industrial temperature range of -40°C to +105°C. Firmware updates are possible via an I2C bootloader or SWD interface.

CYPD3176-24LQXQ Quick Information

Product Type: USB Type-C Port Controller
Canonical Name: EZ-PD™ BCR-PLUS USB Type-C Port Controller for Power Sinks
Subcategory: Power Sinks

CYPD3176-24LQXQ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CYPD3176-24LQXQ Estimated Pricing

Qty Low High
1+ $2.27 $2.27

Estimated market price range - modelled values for guidance only, not live distributor offers.

CYPD3176-24LQXQ Features

  • Supports USB Type-C and USB-PD 3.1.
  • Integrates USB PD policy manager.
  • Includes load switch controller with soft start.
  • Provides system-level fault protection.
  • Operates from 3.0 V to 24.5 V.

CYPD3176-24LQXQ Applications

  • Ideal for legacy connector replacement.
  • Targets drones and smart speakers.
  • Suitable for power tools.
  • Enables USB-C power conversion.

CYPD3176-24LQXQ FAQs

3 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the CYPD3176-24LQXQ?

The operating voltage range is 3.0 V to 24.5 V.

What type of package is the CYPD3176-24LQXQ available in?

It is available in a 24-QFN package.

What are the ESD protection levels for this USB Type-C controller?

It offers ± 8-kV contact discharge and ±15-kV air gap discharge based on IEC61000-4-2 level 4C.
