| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Core Processor | |
| ESD Protection | |
| Interface | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Operating Voltage | |
| Program Memory Type | |
| RAM Size | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |
The Infineon CYPD3175-24LQXQ is a highly integrated USB Type-C port controller designed for applications such as PC power adapters, mobile chargers, car chargers, and power banks. It complies with the latest USB Type-C and PD standards, including USB PD Revision 3.1 with programmable power supply (PPS) mode.
This controller utilizes Infineon's M0S8 technology and is built around a 32-bit Arm Cortex-M0 processor. It features 64 KB of Flash memory and 8 KB of SRAM, along with a complete Type-C USB PD transceiver. The device integrates all necessary termination resistors for a Type-C port and includes feedback control circuitry for voltage (VBUS) regulation.
Key features include support for legacy charging standards like QC 4.0, Apple charging 2.4A, AFC, and BC 1.2. It also offers integrated voltage regulation and current sense amplifier capabilities, with constant current or constant voltage modes. System-level fault protection is provided, including VBUS to CC short protection, on-chip OVP, OCP, UVP, and SCP. The device operates from 3.0V to 24.5V and is tolerant up to 30V. It is available in a 24-pin QFN package and supports an extended industrial temperature range of -40°C to +105°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.27 | $2.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The CYPD3175-24LQXQ features an ARM Cortex-M0 processor.
The CYPD3175-24LQXQ has 64KB of Flash memory.
The CYPD3175-24LQXQ has 8KB of RAM.
The CYPD3175-24LQXQ operates from 3.0V to 24.5V.
The operating temperature range is -40°C to 105°C.
The CYPD3175-24LQXQ supports I2C, SPI, and UART interfaces.

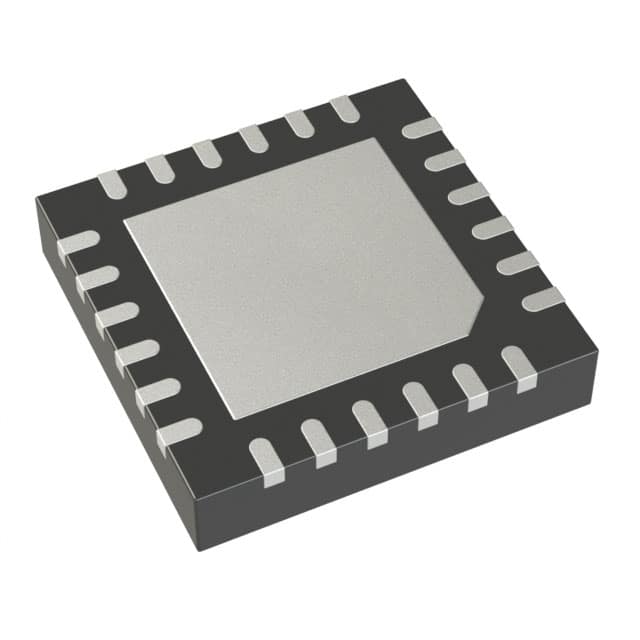

The CYPD3175-24LQXQ is available in a 24-QFN (4x4) package.
