| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
17,365 pcs
|
17365 pcs | On Request | 1 | On Request | On Request | 25+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Current | |
| Data Rate | |
| Frequency | |
| Memory Size | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Voltage |

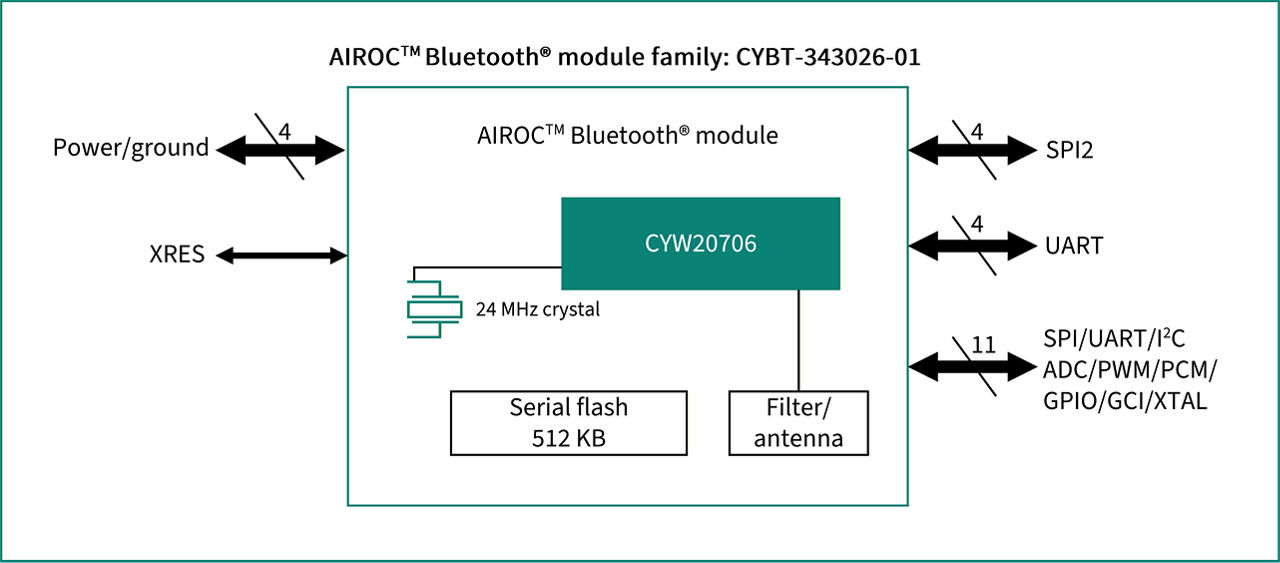

The Infineon Technologies CYBT-343026-01 is a fully integrated Bluetooth 5.0 Smart Ready wireless module designed for cost-optimized Bluetooth connectivity. This module includes an onboard crystal oscillator, passive components, flash memory, and the Cypress CYW20706 silicon device.
Key electrical specifications include an operating voltage range of 2.3V to 3.6V, a maximum TX output power of +12 dBm for Bluetooth Classic and +9 dBm for Bluetooth Low Energy, and a receive sensitivity of -96.5 dBm for Bluetooth Low Energy. It supports data rates up to 6 Mbps and modulation schemes including 8DPSK, DQPSK, and GFSK. The module is equipped with 512 KB of onboard serial flash memory and supports peripheral functions such as ADC, PWM, UART, I2C, SPI, and a PCM/I2S audio interface.
With a compact module size of 12.00 mm x 15.50 mm x 1.95 mm, the CYBT-343026-01 is suitable for space-constrained applications. It features an integrated trace antenna and is designed for surface mount installation. The operating temperature range is -30°C to +85°C, making it suitable for various environmental conditions. The module is fully qualified by Bluetooth SIG and certified to multiple international regulations.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.68 | $8.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 2.3V to 3.6V.
The operating temperature range is -30°C to 85°C.
The receive sensitivity for Bluetooth Low Energy is -96.5 dBm.
It supports I²C, I²S, PCM, SPI, and UART interfaces.
The module has 512 KB of onboard serial flash memory.
The maximum TX output power for Bluetooth Classic is +12 dBm.
