| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
150 pcs
|
150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Antenna Type | |
| Automotive Grade | |
| Current | |
| Current Consumption | |
| Data Rate | |
| Frequency | |
| Industrial Grade | |
| Medical Grade | |
| Memory Size | |
| Military Grade | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Voltage |

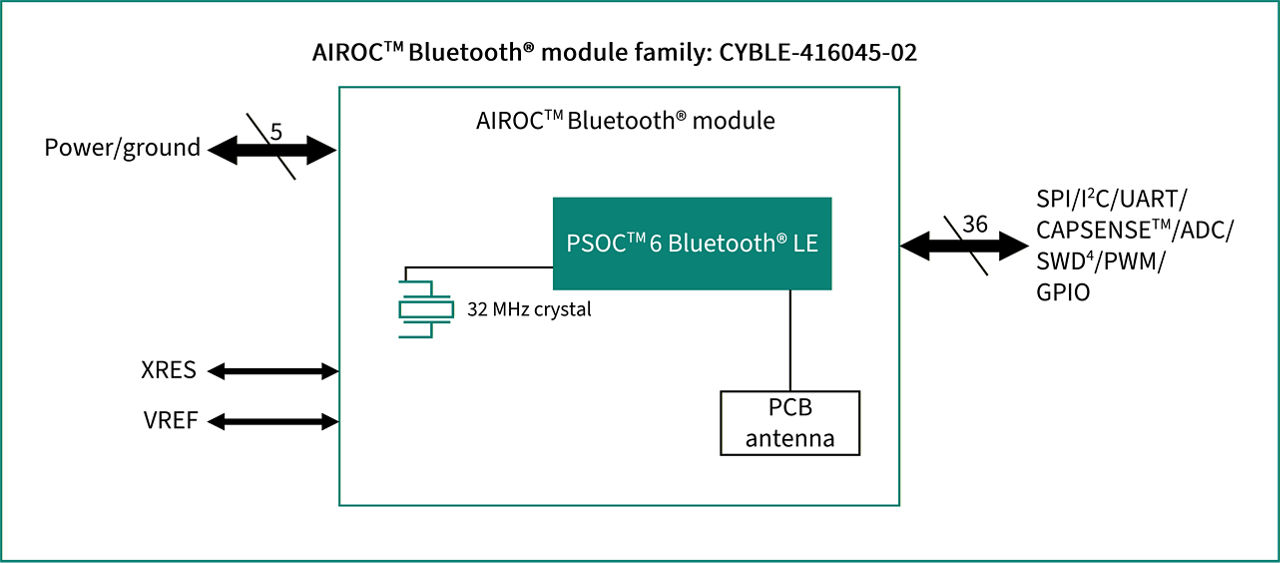

The Infineon CYBLE-416045-02 is a fully certified and qualified module supporting Bluetooth Low Energy (BLE) wireless communication. This turnkey solution includes onboard crystal oscillators, a trace antenna, passive components, and the Cypress PSoC 63 BLE silicon device.
Key electrical specifications include an operating voltage range of 1.71V to 3.6V, TX output power from -20 dBm to +4 dBm, and a sensitivity of -95 dBm. It supports a data rate of 2Mbps and operates in the 2.4GHz to 2.5GHz frequency range. The module integrates 1MB of Flash memory, 128kB of ROM, and 288kB of SRAM.
Designed for high-performance BLE wireless solutions, the CYBLE-416045-02 is certified to FCC, CE, MIC, and ISED regulations. It operates within an industrial temperature range of -40 °C to +85 °C. The module is provided in a compact 14.0 mm x 18.5 mm x 2.00 mm package and utilizes Surface Mount technology.
This module is compatible with Bluetooth 5.0 and offers up to 36 GPIOs. It is suitable for applications requiring a scalable and reconfigurable platform architecture with programmable analog and digital blocks.
| Qty | Low | High |
|---|---|---|
| 1+ | $13.73 | $13.73 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 1.71V to 3.6V.
The operating temperature range is -40°C to +85°C.
The module is compatible with Bluetooth 5.0.
The TX output power ranges from -20 dBm to +4 dBm.
The sensitivity is -95 dBm.
It has 1MB Flash, 128kB ROM, and 288kB SRAM.
The module is supplied in a 43-SMD Module package.
