| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,710 pcs
|
2710 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Data Rate (Max) | |
| Frequency | |
| GPIO | |
| Memory Size | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Protocol | |
| Sensitivity | |
| Serial Interfaces | |
| Supplier Device Package | |
| Type | |
| Voltage Supply |

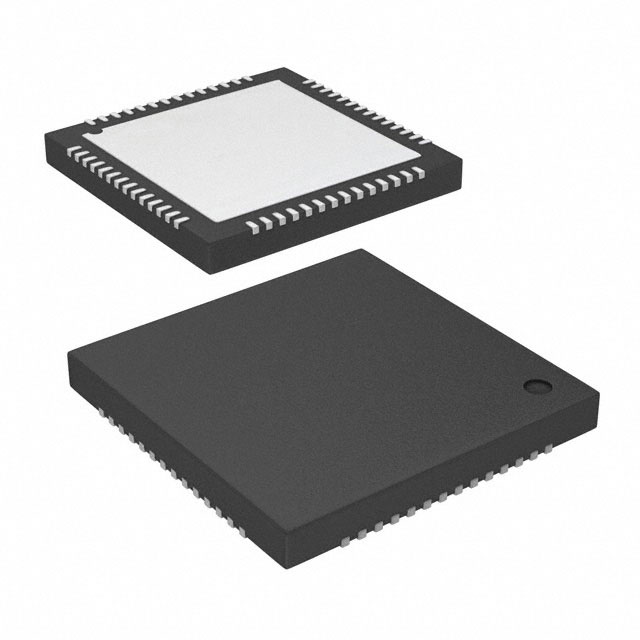

The Infineon CYBL10562-56LQXI is a versatile RF Transceiver IC featuring an integrated microcontroller, designed for Bluetooth v4.1 applications. It operates in the 2.4GHz frequency band, offering a maximum data rate of 1Mbps and an output power of 3dBm. The device boasts a sensitivity of -89dBm and includes 128kB Flash and 16kB SRAM for embedded applications.
Connectivity is facilitated through multiple serial interfaces including I²C, I²S, SPI, and UART, supported by 36 GPIO pins. The operating supply voltage ranges from 1.9V to 5.5V, with typical current consumption of 16.4mA for receiving and 15.6mA for transmitting. This component is suitable for operation within a temperature range of -40°C to 85°C.
Packaged in a 56-UFQFN Exposed Pad, the CYBL10562-56LQXI is designed for surface mounting. It is specified as ROHS3 Compliant and has a Moisture Sensitivity Level (MSL) of 3. The product status is listed as Obsolete.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.71 | $0.71 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The CYBL10562-56LQXI operates at 2.4GHz.
The CYBL10562-56LQXI supports Bluetooth v4.1.
The maximum data rate for the CYBL10562-56LQXI is 1Mbps.
The supply voltage range is 1.9V to 5.5V.
The operating temperature range is -40°C to 85°C.
It is supplied in a 56-UFQFN Exposed Pad package.
