CYBL10162-56LQXIT
Cypress Semiconductor
The Cypress Semiconductor CYBL10162-56LQXI is a Bluetooth v4.1 RF Transceiver IC. It operates within the 2.4GHz frequency band and supports a voltage range of 1.8V to 5.5V.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13,618 pcs
|
13618 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Data Rate (Max) | |
| Frequency | |
| GPIO | |
| Memory Size | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Protocol | |
| Sensitivity | |
| Serial Interfaces | |
| Type |
The Infineon CYBL10162-56LQXI is a versatile RF Transceiver IC featuring an integrated microcontroller, designed for Bluetooth v4.1 applications. It operates in the 2.4GHz frequency band and supports data rates up to 1Mbps.
Key electrical characteristics include a supply voltage range of 1.8V to 5.5V, a transmit power of 3dBm, and receiver sensitivity of -91dBm. The device offers multiple serial interfaces such as I2C, SPI, and UART, along with 36 GPIO pins. Memory is available with 128kB Flash, 8kB ROM, and 16kB SRAM.
Packaged in a 56-UFQFN Exposed Pad, this component is intended for surface mounting. It operates within a temperature range of -40°C to 105°C. The device is ROHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.71 | $0.71 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for the CYBL10162-56LQXI is between 1.8V and 5.5V.

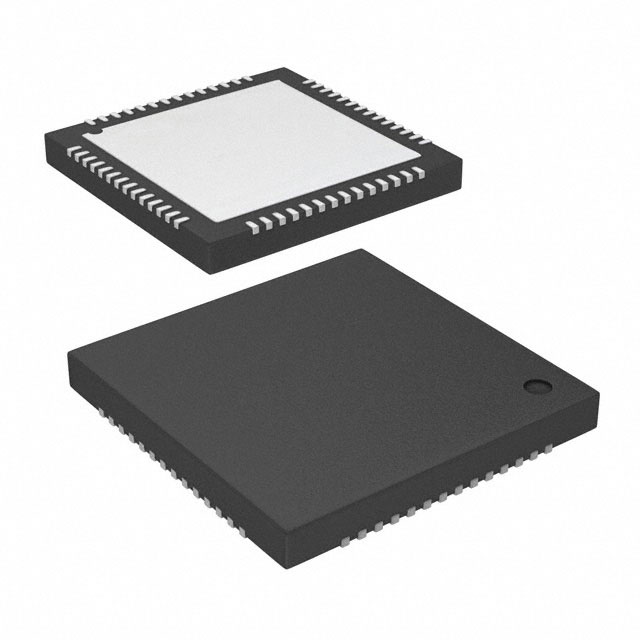

The CYBL10162-56LQXI is supplied in a 56-UFQFN Exposed Pad package.
The operating temperature range for the CYBL10162-56LQXI is -40°C to 105°C.
Yes, the CYBL10162-56LQXI is ROHS3 compliant.
The maximum data rate for the CYBL10162-56LQXI is 1Mbps.
The CYBL10162-56LQXI supports I2C, SPI, and UART serial interfaces.
