| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
640 pcs
|
640 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| Failure Rate | |
| Mounting Type | |
| Number of I/O | |
| Operating Temperature | |
| Oscillator Type | |
| Package / Case | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Storage Temperature | |
| Tape & Reel |

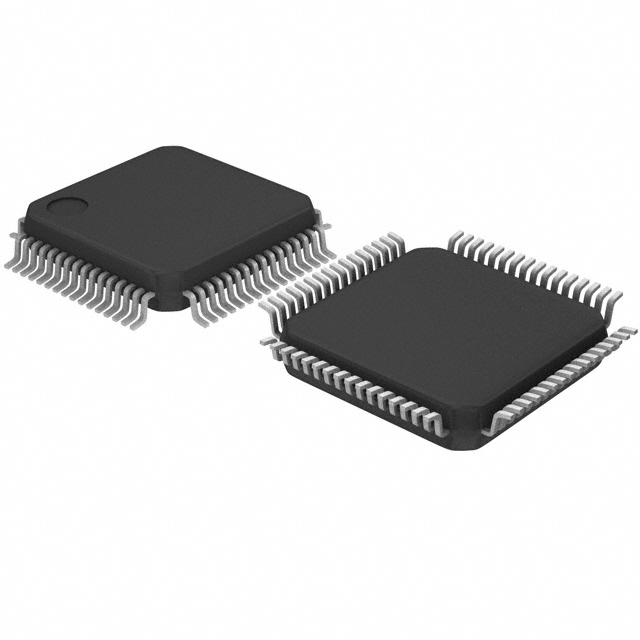

The Infineon CY8C4548AZQ-S485 is a 32-bit microcontroller from the PSoC 4 CY8C4500 series, built around the ARM Cortex-M0+ core. This device operates at a speed of 48MHz and features 256KB of FLASH program memory along with 32KB of RAM.
It supports a wide supply voltage range from 1.71V to 5.5V and includes 53 I/O pins. The microcontroller is equipped with various peripherals such as Brown-out Detect/Reset, CapSense, LCD, POR, PWM, and WDT. Connectivity options include I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, and UART/USART.
The CY8C4548AZQ-S485 is housed in a 64-TQFP (10x10) package and is designed for surface mount applications. It also features integrated data converters, including A/D converters (16x10b, 20x12b SAR) and D/A converters (2x7/8b). The operating temperature range is -40°C to 105°C (TA).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The core processor is ARM Cortex-M0+.
The program memory type is FLASH with a size of 256KB.
It has 32KB of RAM.
The operating voltage range is 1.71V to 5.5V.
The operating temperature range is -40°C to 105°C.
It is available in a 64-TQFP (10x10) package for surface mounting.
